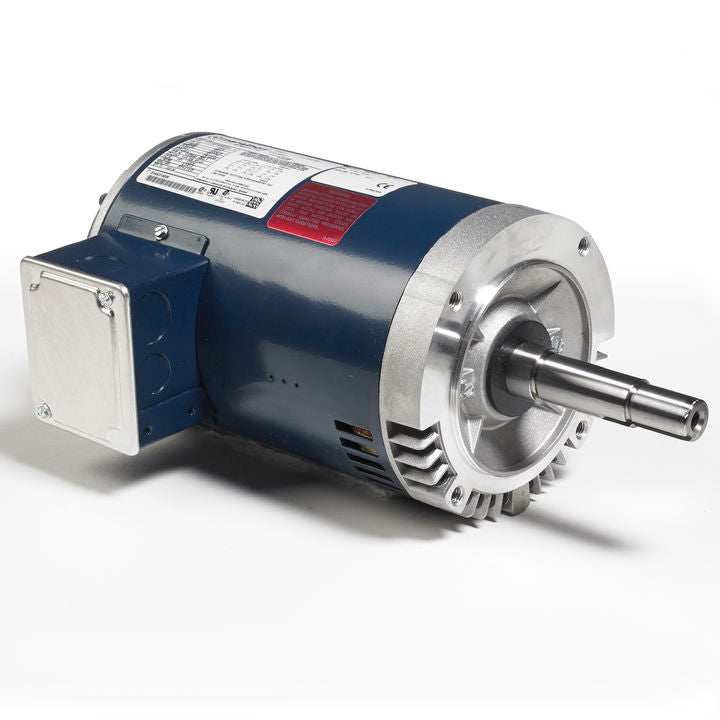

Marathon Electric E147B, 3 HP, 1800 RPM, 182JMV FR, 200 V, 3 PH, Rigid Base, General Purpose, C-Face Footless, 182TTDW16062

E147B, 3 HP, 1800 RPM, 182JMV FR, 200 V, 3 PH, Rigid Base, General Purpose, C-Face Footless, 182TTDW16062

General Specifications

Model : 182TTDW16062
Catalog No : E147B
Part Description : 3,1800,DP,182JMV,3/60/200
Category : JM
Stock : No

Nameplate Specifications

Output HP : 3 Hp
Output KW : 2.24 kW
Frequency : 60 Hz
Voltage : 200 V
Current : 9.2 A
Speed : 1755 rpm
Service Factor : 1.15
Phase : 3
Efficiency : 89.5 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : K
Frame : 182JMV
Enclosure : DP
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6207
Opp Drive End Bearing Size : 6205
UL : Recognized
CSA : Y
CE : Y
IP Code : 22

Technical Specifications

Electrical Type : SQ CAGE IND RUN
Starting Method : ACROSS THE LINE
Poles : 4
Rotation : REV
Mounting : ROUND
Motor Orientation : SHAFT DOWN
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : JM
Overall Length : 14.95 in
Frame Length : 9 in
Shaft Diameter : 1.13 in
Shaft Extension : 4.25 in
Assembly/Box Mounting : F1
ONLY UPC : 722856050892
