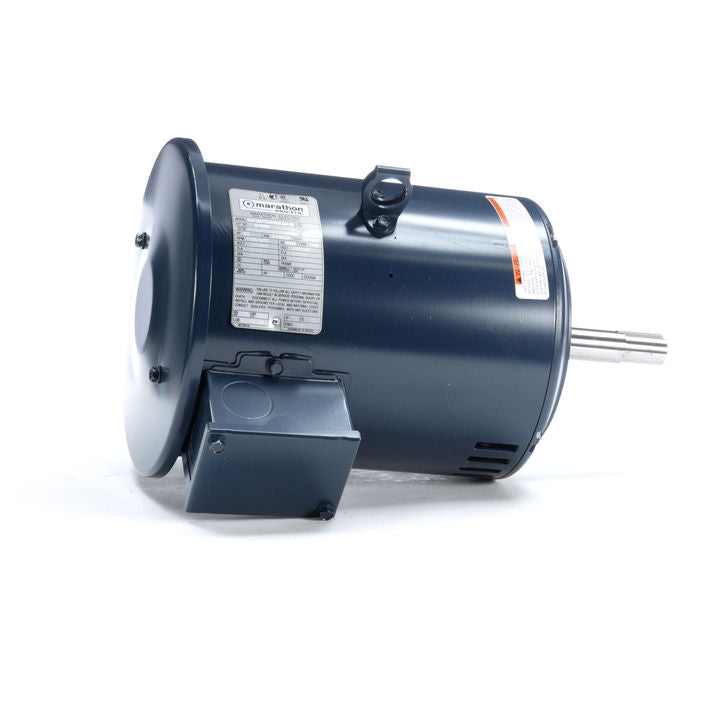

Marathon Electric E158B, 5 Hp, 1800 Rpm, 184JMV FR, 230/460 Vac, 3 PH, Dripproof, C-Face Less Base, Close-Coupled Pump, JM, 184TTDW16073

E158B, 5 Hp, 1800 Rpm, 184JMV FR, 230/460 Vac, 3 PH, Dripproof, C-Face Less Base, Close-Coupled Pump, JM, 184TTDW16073

Engineering Data

Output HP : 5 HP
Output KW : 3.7 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 12.6/6.3 A
Speed : 1755 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 89.5 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : J
Frame : 184JMV
Enclosure : Drip Proof
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6207
Opp Drive End Bearing Size : 6205
UL : Recognized
CSA : Y CE : Y IP Code : 12
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 4
Rotation : Reversible
Mounting : Round
Motor Orientation : Shaft Down
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : JM
Overall Length : 16.62 in
Frame Length : 10.00 in
Shaft Diameter : 1.125 in
Shaft Extension : 4.25 in
Assembly/Box Mounting : F1 Only
UPC : 722856050953
Weight : 84.00 LB
