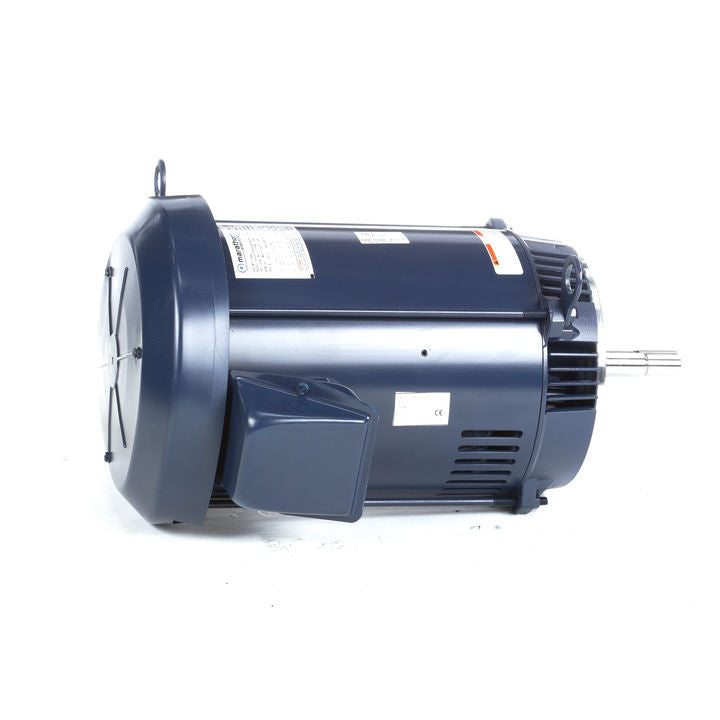

Marathon Electric E177A, 10 HP, 1800 RPM, 215JMV FR, 200 V, 3 PH, Rigid Base, General Purpose, 215TTDWD16365.

E177A, 10 HP, 1800 RPM, 215JMV FR, 200 V, 3 PH, Rigid Base, General Purpose, 215TTDWD16365.

Engineering Data
General Specifications

Output HP:10 Hp
Output KW:7.5 kW
Frequency:60 Hz
Voltage:200 V
Current:30.0 A
Speed:1765 rpm
Service Factor:1.15
Phase:3
Efficiency:91.7 %
Power Factor:77.8
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:H
Frame:215JMV
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6309
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:YIP Code:12
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:1.022 Ohms
Mounting:Round
Motor Orientation:Shaft Down
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:JM
Overall Length:20.44 in
Frame Length:11.15 in
Shaft Diameter:0.875 in
Shaft Extension:4.25 in
Assembly/Box Mounting:F1/F2 CAPABLE
