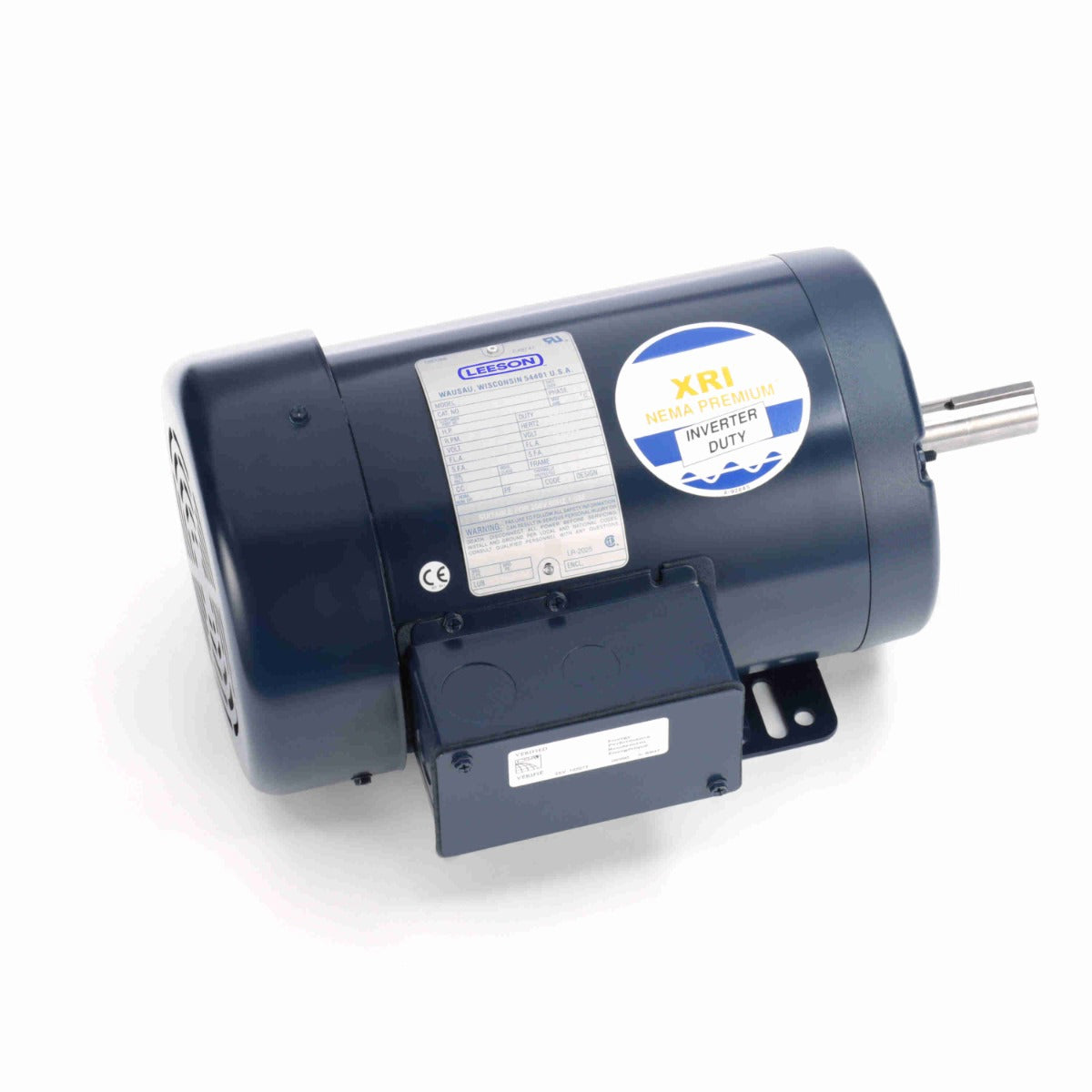

E2104, 1 1/2 Hp, 1800 Rpm, 145T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, NEMA Premium XRI Efficiency Motor, 145TTFR16033

E2104, 1 1/2 Hp, 1800 Rpm, 145T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, NEMA Premium XRI Efficiency Motor, 145TTFR16033 Engineering Data Output HP:1.50 Hp Output KW:1.1 kW Frequency:60 Hz Voltage:230/460 V Current:4.8/2.4 A Speed:1750 rpm Service Factor:1.15 Phase:3 Efficiency:86.5 % Power Factor:67.7 Duty:Continuous Insulation Class:F Design Code:B KVA Code:L Frame:145T Enclosure:Totally Enclosed Fan Cooled Thermal Protection:No Ambient Temperature:40 °C Drive End Bearing Size:6205 Opp Drive End Bearing Size:6203 UL:Recognized CSA:Y CE:YIP Code:43 Technical Specifications Electrical Type:Squirrel Cage Inverter Rated Starting Method:Line Or Inverter Poles:4 Rotation:Reversible Resistance Main:9.12 Ohms Mounting:Rigid Base Motor Orientation:Horizontal Drive End Bearing:Ball Opp Drive End Bearing:Ball Frame Material:Rolled Steel Shaft Type:T Overall Length:13.75 in Frame Length:7.50 in Shaft Diameter:0.875 in Shaft Extension:2.37 in Assembly/Box Mounting:F1 ONLY
