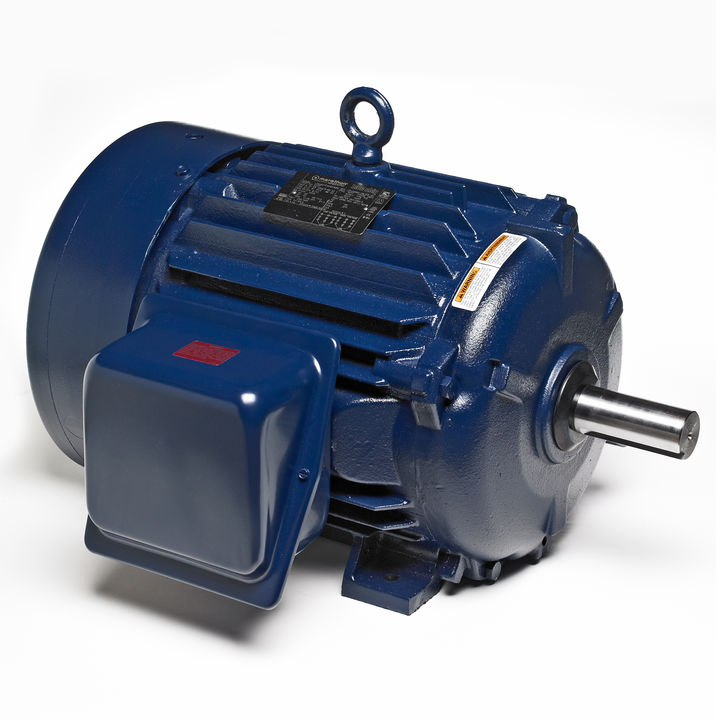

Marathon Electric E218, 7 1/2 Hp, 3600 Rpm, 213T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, NEMA Premium XRI Efficiency Motor, 213TTTS6001

E218, 7 1/2 Hp, 3600 Rpm, 213T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, NEMA Premium XRI Efficiency Motor, 213TTTS6001

Engineering Data

Nameplate Specifications
Output HP  7.5 Hp
Output KW  5.6 kW
Frequency  60 Hz
Voltage  230/460 V
Current  17.8/8.9 A
Speed  3540 rpm
Service Factor  1.15
Phases  3
Efficiency  90.2 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  H
Frame  213T
Enclosure  TENV
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6307
Opp Drive End Bearing Size  6206
UL  Recognized
CSA  Y
CE  Y
IP Code  43
Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  LINE OR INVERTER
Poles  2
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  T
Overall Length  17.19 in
Frame Length  8.75 in
Shaft Diameter  1.38 in
Shaft Extension  3.56 in
Assembly/Box Mounting  F1/F2 CAPABLE
