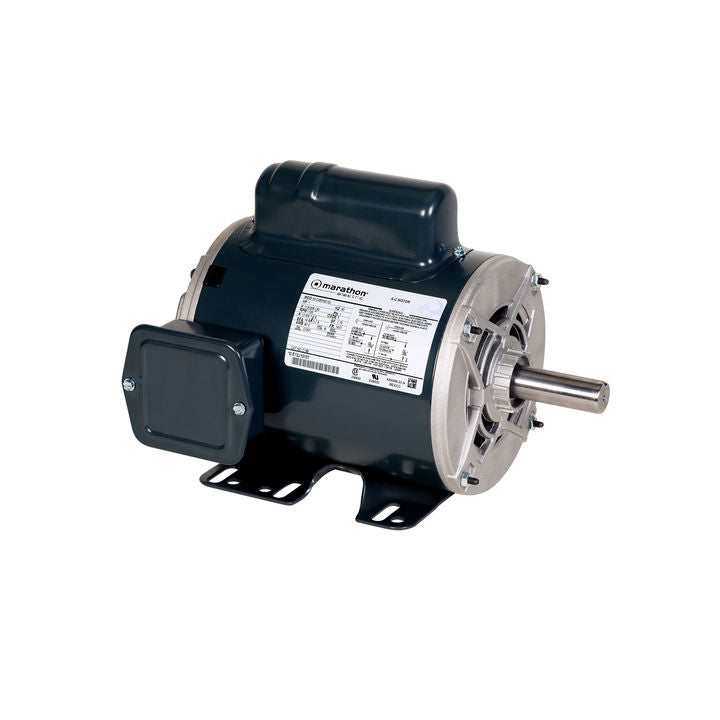

Marathon Electric E262A, 1/2 Hp,1800 Rpm, 56C FR, 115/230 Vac, 1 PH, Dripproof, C-Face Footless, General Purpose, 56B17D11022.

E262A, 1/2 Hp,1800 Rpm, 56C FR, 115/230 Vac, 1 PH, Dripproof, C-Face Footless, General Purpose, 56B17D11022.

Engineering Data

Nameplate Specifications

Output HP  0.5 Hp
Output KW  0.37 kW
Frequency  60 Hz
Voltage  120/240 V
Current  4.4/2.2 A
Speed  1725 rpm
Service Factor  1.25
Phases  1
Efficiency  76.2 %
Duty  CONTINUOUS
Insulation Class  B
Design Code  N
KVA Code  K
Frame  56
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6203
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Y
CE  Y
IP Code  22
Technical Specifications

Electrical Type  CAP START CAP RUN
Starting Method  ACROSS THE LINE
Poles  4
Rotation  SELECTIVE CCW
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type  STANDARD 56
Overall Length  11.47 in
Frame Length  7.5 in
Shaft Diameter  0.63 in
Shaft Extension  1.97 in
Assembly/Box Mounting  F1 ONLY
