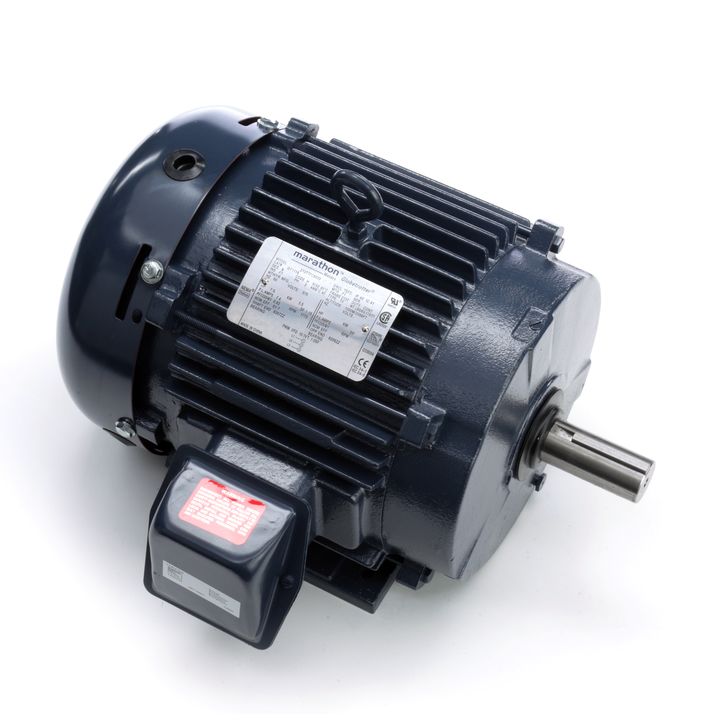

Marathon Electric E302A, 2 Hp, 1800 Rpm, 145T FR, 575 Vac, 3 PH, TENV, Rigid Base, NEMA Premium XRI Efficiency Motor, 145TTTN16037

E302A, 2 Hp, 1800 Rpm, 145T FR, 575 Vac, 3 PH, TENV, Rigid Base, NEMA Premium XRI Efficiency Motor, 145TTTN16037

Engineering Data

Nameplate Specifications

Output HP  2 Hp
Output KW  1.49 kW
Frequency  60 Hz
Voltage  575 V
Current  2.4 A
Speed  1760 rpm
Service Factor  1.15
Phases  3
Efficiency  86.5 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  N
Frame  145T
Enclosure TENV
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6205
Opp Drive End Bearing Size 6203
UL  Recognized
CSA  Y
CE  Y
IP Code  43
Technical Specifications

Electrical Type  SQ CAGE IND RUN
Starting Method  ACROSS THE LINE
Poles  4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  T
Overall Length  12.68 in
Frame Length  7.5 in
Shaft Diameter  0.88 in
Shaft Extension  2.56 in
Assembly/Box Mounting  F1/F2 CAPABLE
