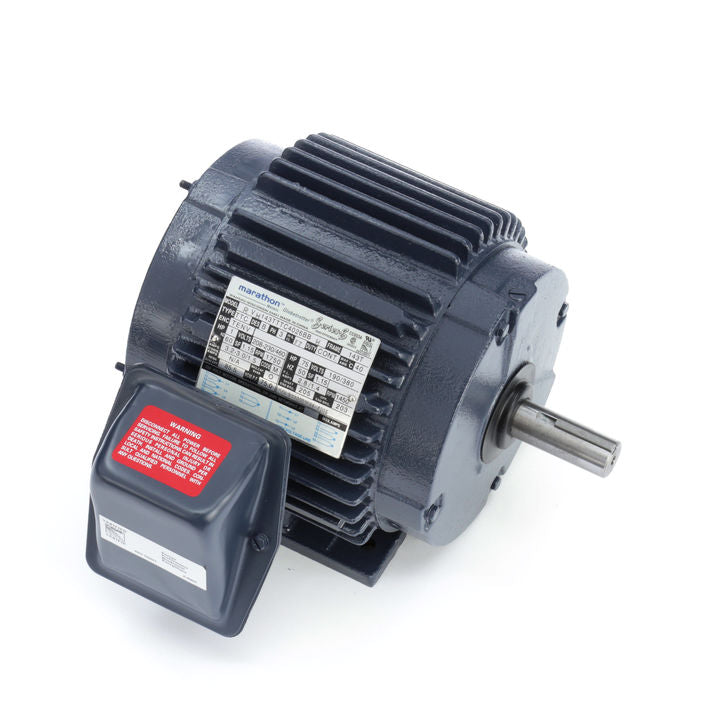

Marathon Electric E349, 1 Hp, 1800 Rpm, 143T FR, 230/460 Vac, 3 PH, TENV, Rigid Base, Severe Duty Motor, 143TTTN6026.

E349, 1 Hp, 1800 Rpm, 143T FR, 230/460 Vac, 3 PH, TENV, Rigid Base, Severe Duty Motor, 143TTTN6026.

Engineering Data

Output HP  1 Hp
Output KW  0.75 kW
Frequency  60 Hz
Voltage  230/460 V
Current  3/1.5 A
Speed  1735 rpm
Service Factor  1.15
Phases  3
Efficiency  85.5 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  M
Frame  143T
Enclosure  TENV
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6205
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Y
CE  Y
IP Code  43
Technical Specifications

Electrical Type  SQ CAGE IND RUN
Starting Method  ACROSS THE LINE
Poles  4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  T
Overall Length  10.43 in
Frame Length  5.25 in
Shaft Diameter  0.88 in
Shaft Extension  2.56 in
Assembly/Box Mounting  F1/F2 CAPABLE
