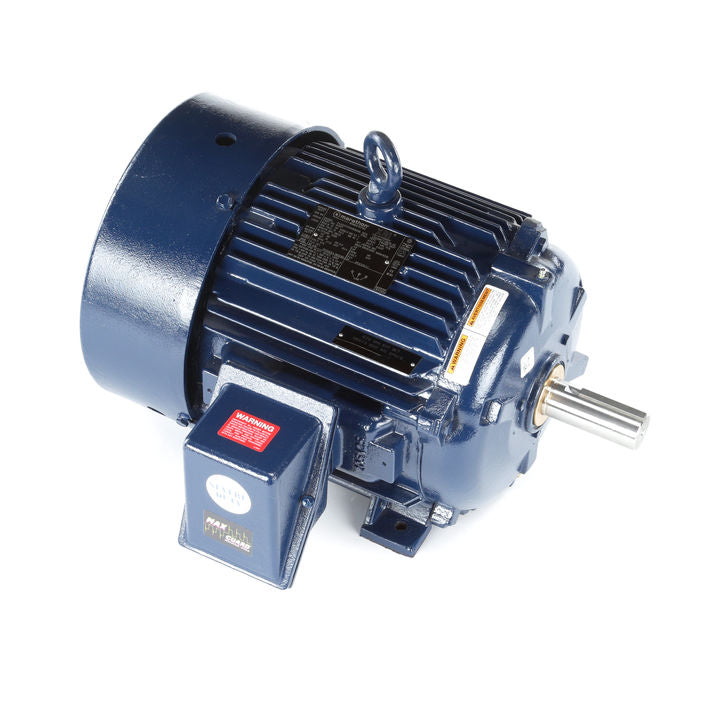

Marathon Electric E366, 600 Hp, 1800 Rpm, 5011LS FR, 460 V, 3 PH, TEFC, Rigid Base, Hazardous Duty, Severe Duty, XRI Efficiency, 5011LSTFS16033

E366, 600 Hp, 1800 Rpm, 5011LS FR, 460 V, 3 PH, TEFC, Rigid Base, Hazardous Duty, Severe Duty, XRI Efficiency, 5011LSTFS16033

Engineering Data

Output HP:600 Hp
Output KW:450.0 kW
Frequency:60 Hz
Voltage:460 V
Current:655.0 A
Speed:1785 rpm
Service Factor:1.15
Phase:3
Efficiency:96.2 %
Power Factor:89
Duty:Continuous
Insulation Class:H
Design Code:B
KVA Code:G
Frame:5011LS
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6322
Opp Drive End Bearing Size:6318
UL:No
CSA:Y
CE:YIP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:.004 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:LS
Overall Length:67.56 in
Frame Length:49.50 in
Shaft Diameter:2.625 in
Shaft Extension:5.75 in
Assembly/Box Mounting:F1/F2 Capable
