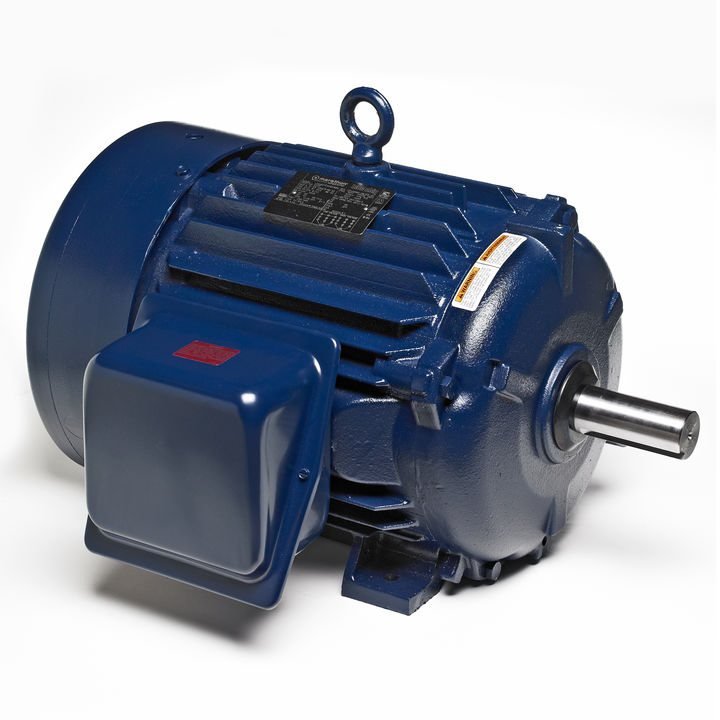

Marathon Electric E619A, 10 Hp, 1800 Rpm, 215T FR, 460 Vac, 3 PH, TEFC, Rigid Base, Hazardous Duty, Severe Duty, XRI Efficiency, 215TTFND6526.

E619A, 10 Hp, 1800 Rpm, 215T FR, 460 Vac, 3 PH, TEFC, Rigid Base, Hazardous Duty, Severe Duty, XRI Efficiency, 215TTFND6526.

Engineering Data

Nameplate Specifications

Output HP 10 Hp
Output KW  7.5 kW
Frequency  60 Hz
Voltage  460 V
Current  13.3 A
Speed  1765 rpm
Service Factor  1.15
Phases  3
Efficiency  91.7 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  H
Frame  215T
Enclosure  TEFC
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6307
Opp Drive End Bearing Size  6208
UL  Recognized
CSA  Y
CE  Y
IP Code  54

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  LINE OR INVERTER
Poles  4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  T
Overall Length  22.63 in
Frame Length  12.12 in
Shaft Diameter  1.38 in
Shaft Extension  3.48 in
Assembly/Box Mounting  F1/F2 CAPABLE
