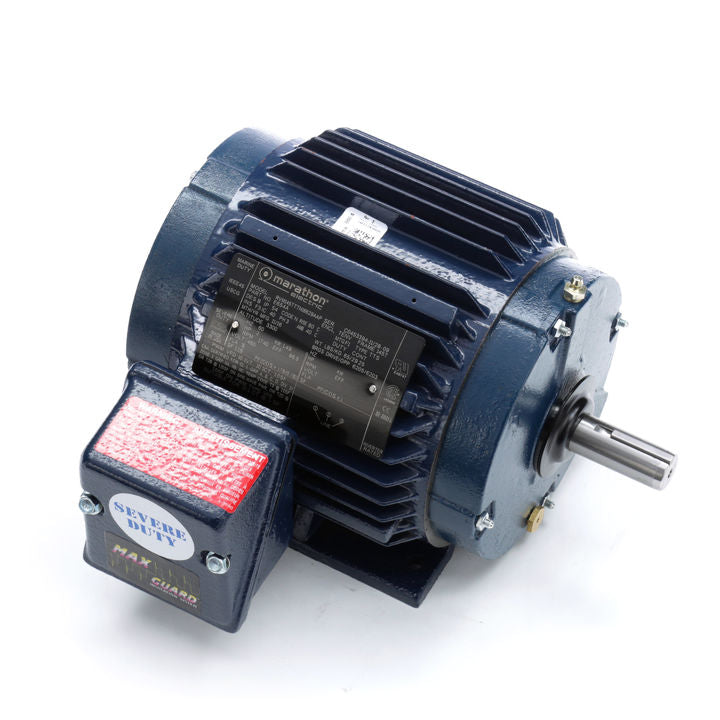

Marathon Electric E652A, 1 1/2 Hp, 1800 Rpm, 145T FR, 460 Vac, 3 PH, TENV, Rigid Base, Hazardous Duty, Severe Duty, XRI Efficiency, 145TTTN16630.

E652A, 1 1/2 Hp, 1800 Rpm, 145T FR, 460 Vac, 3 PH, TENV, Rigid Base, Hazardous Duty, Severe Duty, XRI Efficiency, 145TTTN16630.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:460 V
Current:2.3 A
Speed:1755 rpm
Service Factor:1.15
Phase:3
Efficiency:86.5 %
Power Factor:71
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:P
Frame:145T
Enclosure:Totally Enclosed Non Ventilated
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:54
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:7.9 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:T
Overall Length:11.43 in
Frame Length:6.25 in
Shaft Diameter:0.875 in
Shaft Extension:2.56 in
Assembly/Box Mounting:F1/F2 CAPABLE
