Industrial Motors

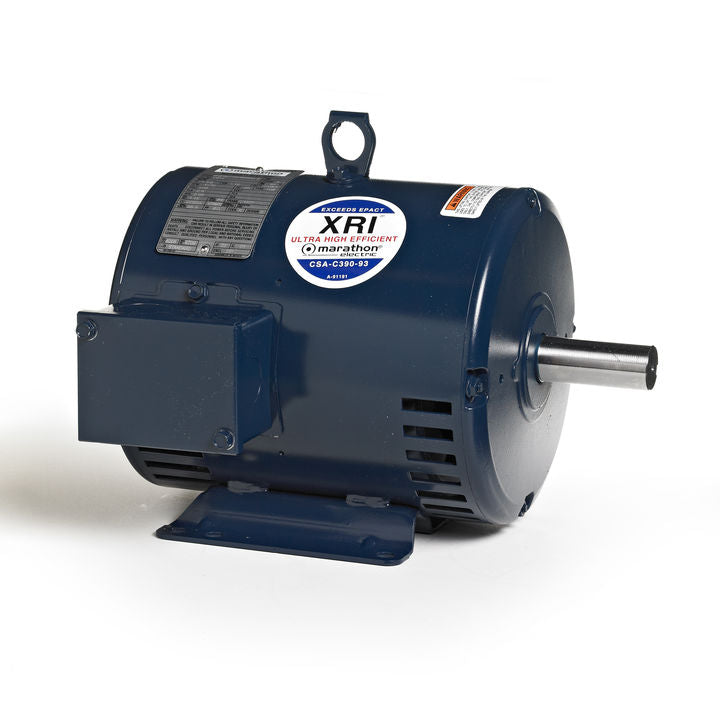

Marathon Electric E762A, 25 Hp, 1800 Rpm, 284T FR, 575 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, EPAct Efficient, 284TTDC6029.

Marathon Electric E762A, 25 Hp, 1800 Rpm, 284T FR, 575 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, EPAct Efficient, 284TTDC6029.

$3,388.00
$3,388.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$3,388.00 $3,218.60
Sale

E762A, 25 Hp, 1800 Rpm, 284T FR, 575 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, EPAct Efficient, 284TTDC6029.

Engineering Data

60 Hertz
HP 25 Voltage 575
kW 18.65 FL Amps 24.4
RPM 1800
FL Eff 91.7 % SF 1.15


Phase 3 Insulation Class B
Frame 284T Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting Rigid NEMA Design B
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F1 (F2 Modification Available) KVA Code F
Drive End Bearing BALL IP Code 12
Opposite End Bearing BALL
Drive End Bearing Size 311
Opposite End Bearing Size 210
Weight 351 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection NOT
