Industrial Motors

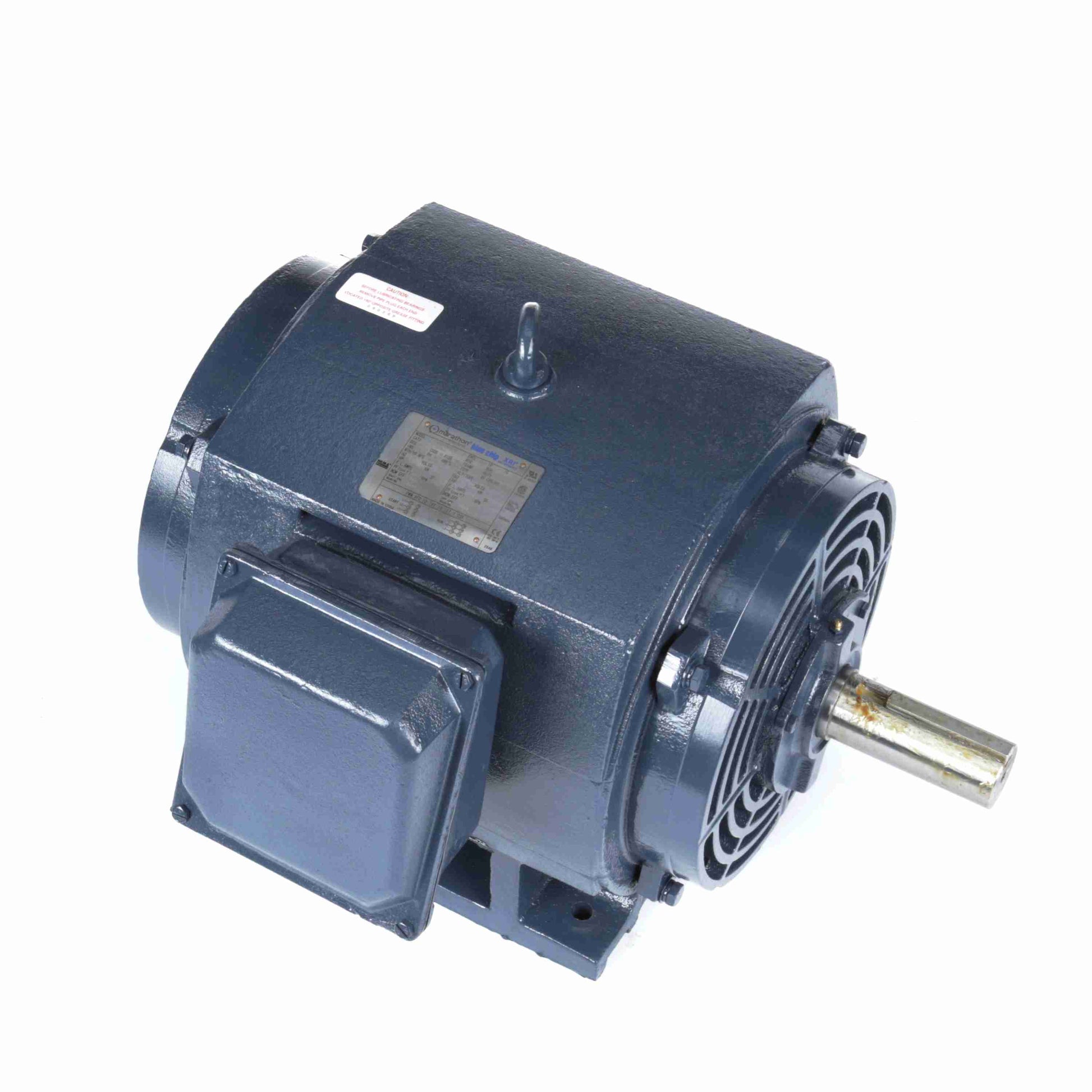

Marathon Electric, E765A, 50 Hp, 1800 Rpm, 326T FR, 575 Vac, 3 PH, ODP, Rigid Base, General Purpose Motor, 326TTDC6029

Marathon Electric, E765A, 50 Hp, 1800 Rpm, 326T FR, 575 Vac, 3 PH, ODP, Rigid Base, General Purpose Motor, 326TTDC6029

$5,994.00
$5,994.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$5,994.00 $5,694.30
Sale

E765A, 50 Hp, 1800 Rpm, 326T FR, 575 Vac, 3 PH, ODP, Rigid Base, General Purpose Motor, 326TTDC6029

Engineering Data

Output HP :50 HP
Output KW :37.0 kW
Frequency :60 Hz
Voltage :575 V
Current :47.0 A
Speed :1780 RPM
Service Factor :1.15
Phase :3
Efficiency :94.5 %
Duty :Continuous
Insulation Class :F
Design Code :B
KVA Code :G
Frame :326T
Enclosure :Drip Proof
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6312
Opp Drive End Bearing Size :6312
UL :Recognized
CSA :Y
CE :YIP Code :12
Technical Specifications
Electrical Type :Squirrel Cage Inverter Rated
Starting Method :Line Or Inverter
Poles :4
Rotation :Reversible
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Cast Iron
Shaft Type :T
Overall Length :27.52 in
Shaft Diameter :2.125 in
Shaft Extension :5.25 in
Assembly/Box Mounting :F1 Only
UPC :722856013156
