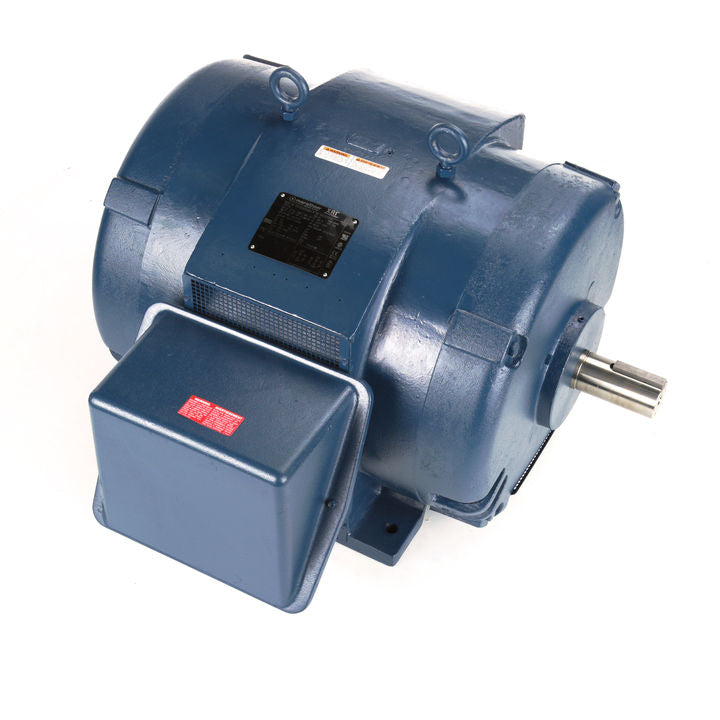

Marathon Electric E792A, 150 Hp, 1800 Rpm, 444TS FR, 460 Vac, 3 PH, DP, Rigid Base, General Purpose Motor, 444TSTDS16038

E792A, 150 Hp, 1800 Rpm, 444TS FR, 460 Vac, 3 PH, DP, Rigid Base, General Purpose Motor, 444TSTDS16038

Engineering Data

Output HP:150 Hp
Output KW:112.0 kW
Frequency:60 Hz
Voltage:460 V
Current:170.0 A
Speed:1785 rpm
Service Factor:1.15
Phase:3
Efficiency:95.8 %
Power Factor:86.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:F
Frame:444TS
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6313
Opp Drive End Bearing Size:6313
UL:Recognized
CSA:Y
CE:YIP Code:12
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Part Wdg Start
Poles:4
Rotation:Reversible
Resistance Main:.0295 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:TS
Overall Length:34.00 in
Frame Length:18.50 in
Shaft Diameter:2.375 in
Shaft Extension:5 in
Assembly/Box Mounting:F1/F2 Capable
