Industrial Motors

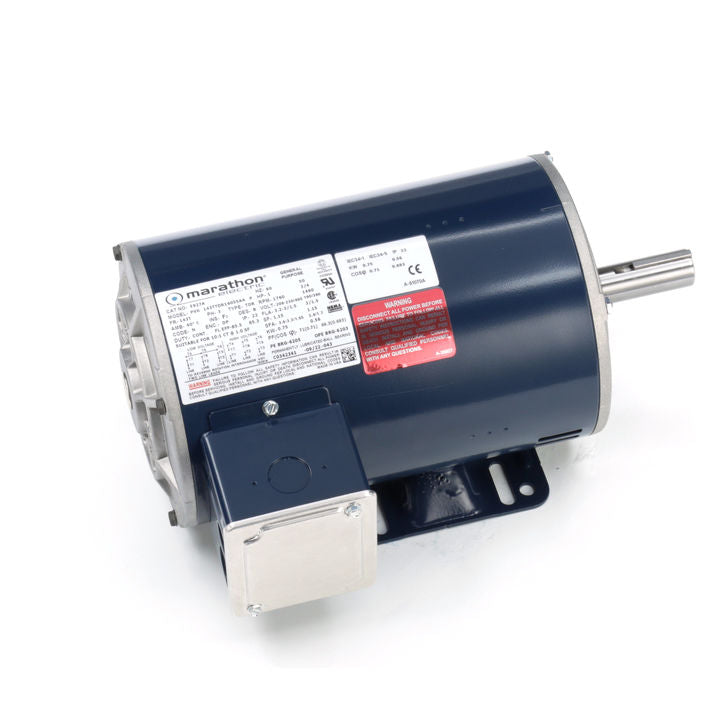

Marathon Electric E927A, 1 Hp, 1800 Rpm, 143T FR, 230/460 Vac, 3 PH, DP, General Purpose Motor, 143TTDR16055.

Marathon Electric E927A, 1 Hp, 1800 Rpm, 143T FR, 230/460 Vac, 3 PH, DP, General Purpose Motor, 143TTDR16055.

$1,193.00
$1,193.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,193.00 $1,133.35
Sale

E927A, 1 Hp, 1800 Rpm, 143T FR, 230/460 Vac, 3 PH, DP, General Purpose Motor, 143TTDR16055.

Engineering Data

Output HP  1 Hp
Output KW  0.75 kW
Frequency  60 Hz
Voltage  230/460 V
Current  3/1.5 A
Speed  1760 rpm
Service Factor  1.15
Phases  3
Efficiency  85.5 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  N
Frame  143T
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6205
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Y
CE  Y
IP Code  22

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  LINE OR INVERTER
Poles  4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type  T
Overall Length  12.99 in
Frame Length  9.06 in
Shaft Diameter  0.88 in
Shaft Extension  2.28 in
Assembly/Box Mounting  F1 ONLY
