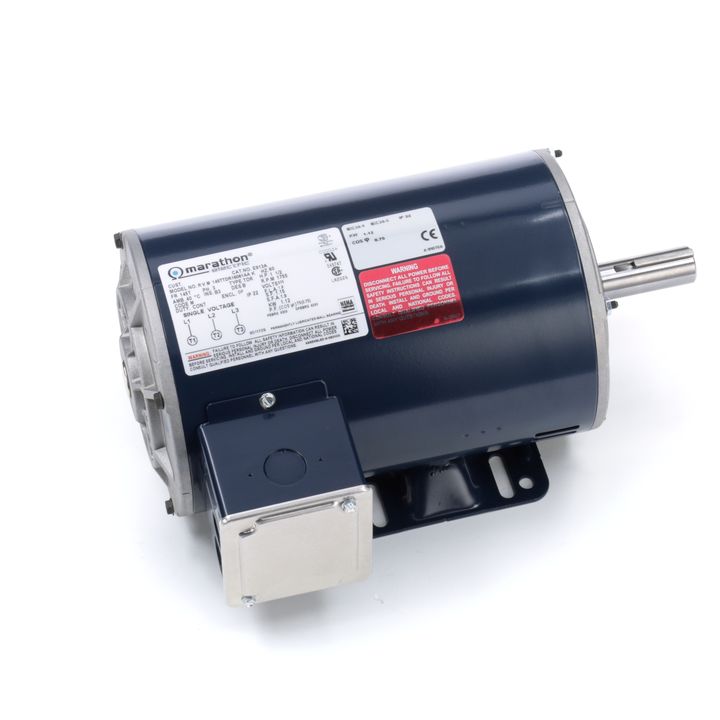

Marathon Electric E929A, 145TTDR16352, 2 Hp, 1800 Rpm, 145T FR, 230/460 Vac, 3 PH, Dripproof, Continuous Duty, XRI Efficiency

E929A, 145TTDR16352, 2 Hp, 1800 Rpm, 145T FR, 230/460 Vac, 3 PH, Dripproof, Continuous Duty, XRI Efficiency

Engineering Data

Nameplate Specifications

Output HP  1.5 Hp
Output KW  1.12 kW
Frequency  60 Hz
Voltage  230/460 V
Current  4.4/2.2 A
Speed  1755 rpm
Service Factor  1.15
Phases  3
Efficiency 86.5 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  M
Frame  145T
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6205
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Y
CE  Y
IP Code  22

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  LINE OR INVERTER
Poles 4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLER STEEL
Shaft Type  T
Overall Length  12.99 in
Frame Length  9.06 in
Shaft Diameter  0.88 in
Shaft Extension  2.28 in
Assembly/Box Mounting  F1 ONLY
