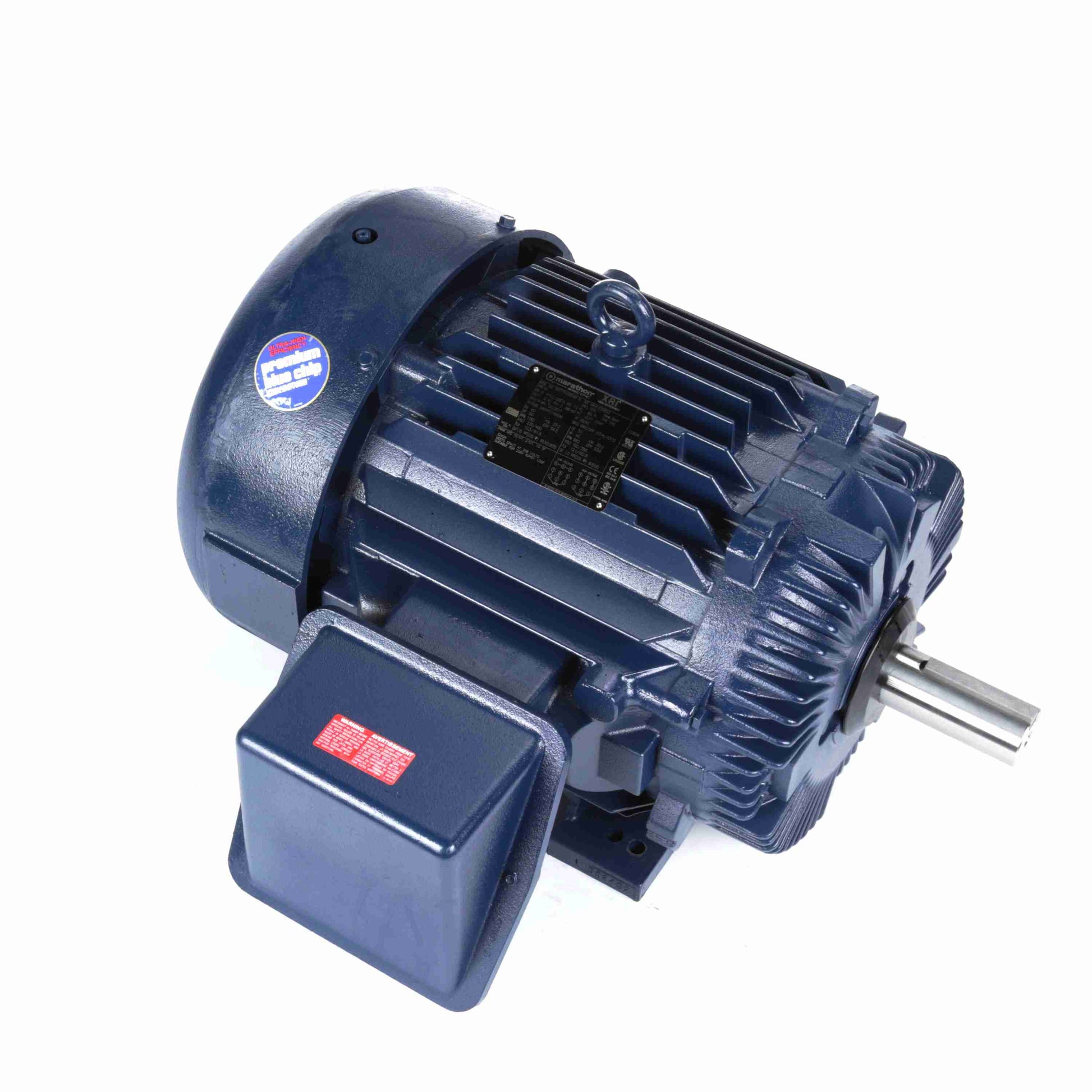

Marathon Electric E999A, 25 Hp, 1800 Rpm, 284TS FR, 208-230/460 Vac, 3 PH, TEFC, General Purpose, 284TSTFC6036

E999A, 25 Hp, 1800 Rpm, 284TS FR, 208-230/460 Vac, 3 PH, TEFC, General Purpose, 284TSTFC6036

Engineering Data

60 Hertz
HP 25
Voltage 208-230/460
kW 18.7 FL
Amps 67-62/31
RPM 1800
FL Eff 92.4 % SF 1.15

Phase 3
Insulation Class F
Frame 284TS
Duty CONTINUOUS
Enclosure TEFC
Ambient 40
Mounting Rigid
NEMA Design B
Orientation HORIZONTAL
Starting Type ACROSS THE LINE
Assembly F1 (F2 Modification Available)
KVA Code F
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 311
Opposite End Bearing Size 210
CE Y
CSA Y
UL Recognized Construction
Thermal Protection NOT
