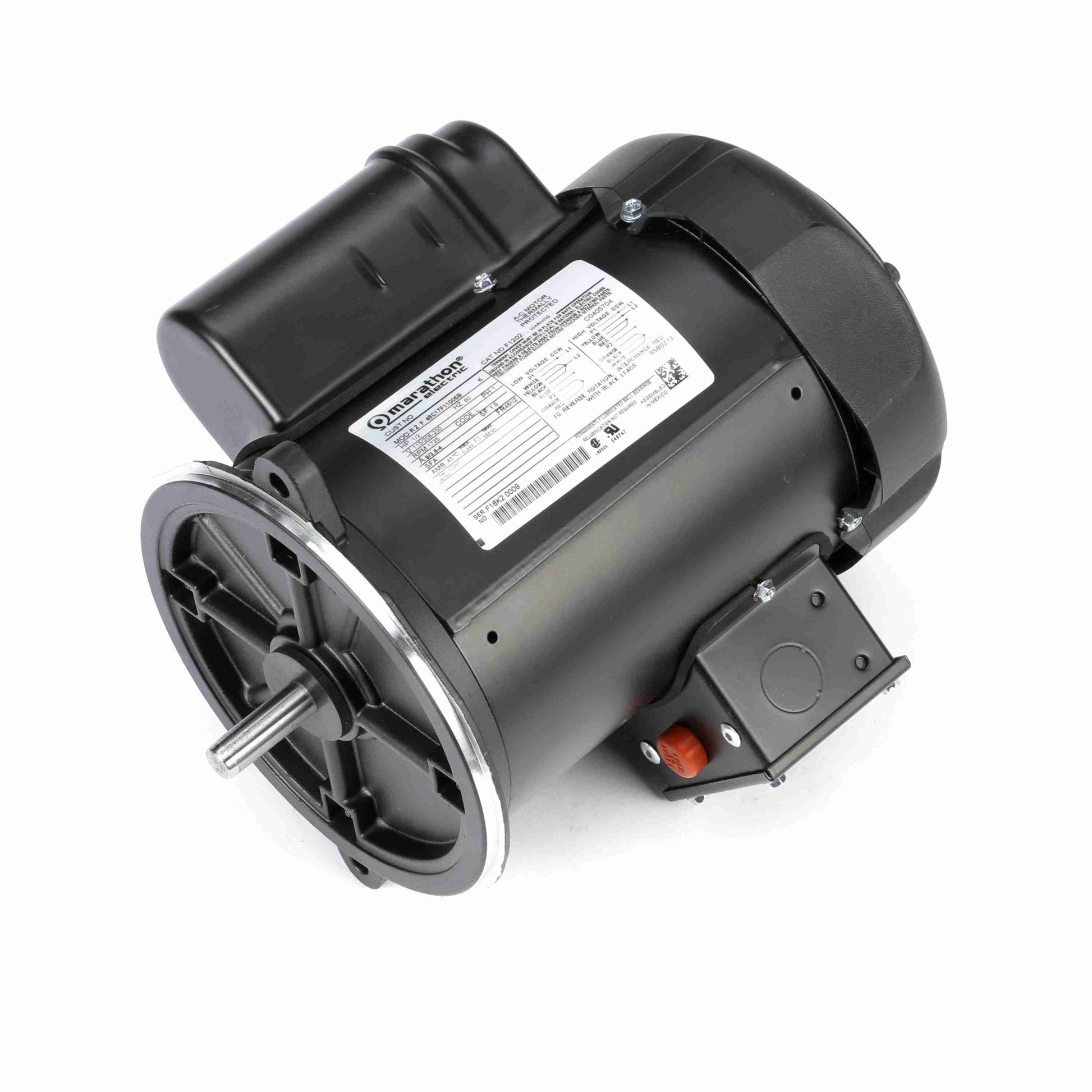

Marathon Electric F1204, 1 Hp, 1800 Rpm, 56NZ FR, 115/230 Vac, 1 PH, TEFC, N Flange, Farm Duty, Auger Drive, 56C17F15537.

F1204, 1 Hp, 1800 Rpm, 56NZ FR, 115/230 Vac, 1 PH, TEFC, N Flange, Farm Duty, Auger Drive, 56C17F15537.

Engineering Data

Output HP : 1 Hp
Output KW : 0.75 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 13.4/6.7 A
Speed : 1725 rpm
Service Factor : 1
Phase : 1
Efficiency : 72 %
Duty : Continous
Insulation Class : F Design
Code : L
KVA Code : M
Frame : 56NZ
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : Manual Ambient
Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized ( Not Protector)
CSA : Y
CE : Y IP
Code : 43
Technical Specifications
Electrical Type : Capacitor Start Induction Run
Starting Method : Across The Line
Poles : 4
Rotation : Selective Counterclockwise
Mounting : Round Motor
Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball Frame Material : Rolled Steel
Shaft Type : Special Extension Both Sides
Overall Length : 13.38 in
Frame Length : 7.56 in
Shaft Diameter : 0.625 in
Shaft Extension : 2.06 in
Assembly/Box Mounting : F1 Only
