Industrial Motors

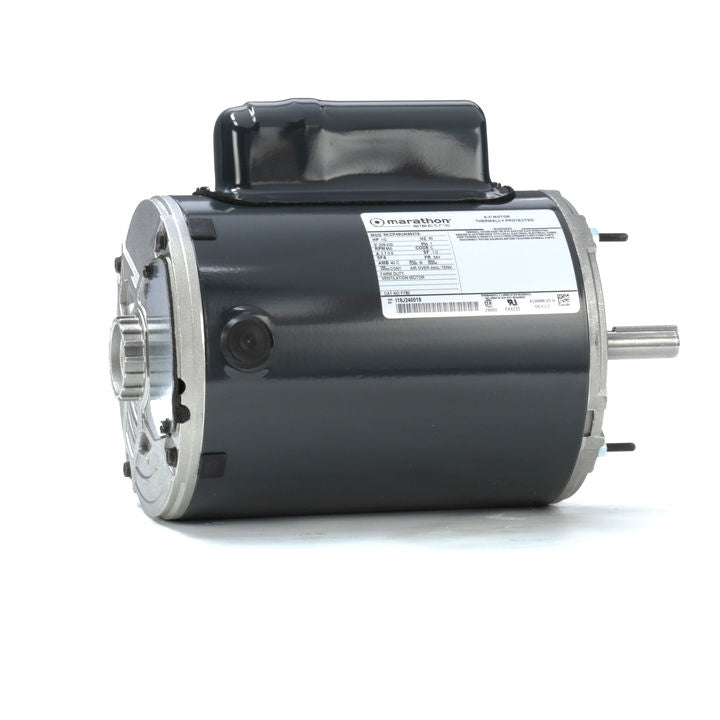

Marathon Electric F780, 1/2 Hp, 900 Rpm, 56Y FR, 208-230 Vac, 1 PH, TEAO, Resilient Base-Thru Bolt, Farm Duty, Auto Overload, 5KCP49UN9837S

Marathon Electric F780, 1/2 Hp, 900 Rpm, 56Y FR, 208-230 Vac, 1 PH, TEAO, Resilient Base-Thru Bolt, Farm Duty, Auto Overload, 5KCP49UN9837S

$861.00
$861.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$861.00 $817.95
Sale

F780, 1/2 Hp, 900 Rpm, 56Y FR, 208-230 Vac, 1 PH, TEAO, Resilient Base-Thru Bolt, Farm Duty, Auto Overload, 5KCP49UN9837S.

Engineering Data

Output HP :1/2 HP
Output KW :0.37 kW
Frequency :60 Hz
Voltage :208-230 V
Current :3.7-3.6 A
Speed :850 RPM
Service Factor :1
Phase :1
Efficiency :60.7 %
Duty :Continuous
Insulation Class :B
KVA Code :C
Frame :56Y
Enclosure :Totally Enclosed Non Ventilated
Overload Protector :AUTO
Ambient Temperature :40 °C
Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203
UL :Recognized
CSA :Yes
CE :N
Technical Specifications
Electrical Type :Permanent Split Capacitor(PSC)
Starting Method :N/R
Poles :8
Rotation :Counterclockwise
Mounting :Round
Motor Orientation :ANY
Drive End Bearing :BALL
Opp Drive End Bearing :BALL
Frame Material :Rolled Steel
Overall Length :11.91 in
Frame Length :7.68 in
Shaft Diameter :0.63 in
