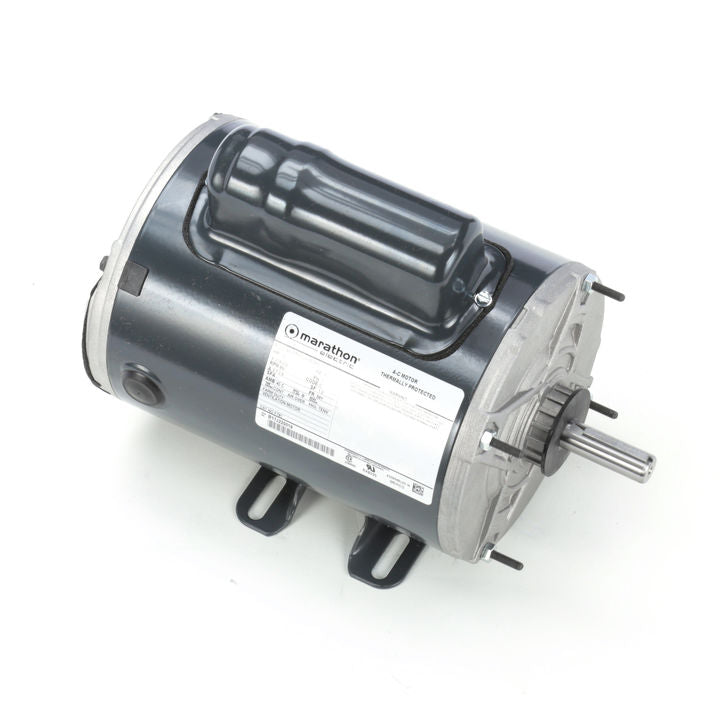

Marathon Electric F781, 1/2 Hp, 900 Rpm, 56Y FR, 208-230 Vac, 1 PH, TEAO, Resilient Base-Thru Bolt, Farm Duty, Auto Overload, 5KCP49UN9838S

F781, 1/2 Hp, 900 Rpm, 56Y FR, 208-230 Vac, 1 PH, TEAO, Resilient Base-Thru Bolt, Farm Duty, Auto Overload, 5KCP49UN9838S.

Engineering Data

Output HP : 0.50 HP
Output KW : 0.37 kW
Frequency : 60 Hz
Voltage : 208-230 V
Current : 3.7-3.6 A
Speed : 850 RPM
Service Factor : 1
Phase : 1
Efficiency : 57.5 %
Duty : Continous
Insulation Class : B
KVA Code : C
Frame : 56Y
Enclosure : Totally Enclosed Non Ventilated
Overload Protector : AUTO
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes CE : N
Technical Specifications
Electrical Type : Permanent Split Capacitor(PSC)
Starting Method : N/R
Poles : 8
Rotation : Counterclockwise
Mounting : Rigid base
Motor Orientation : Any
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 11.91 in
Frame Length : 7.68 in
Shaft Diameter : 0.630 in
Shaft Extension : 1.88 in
