Industrial Motors

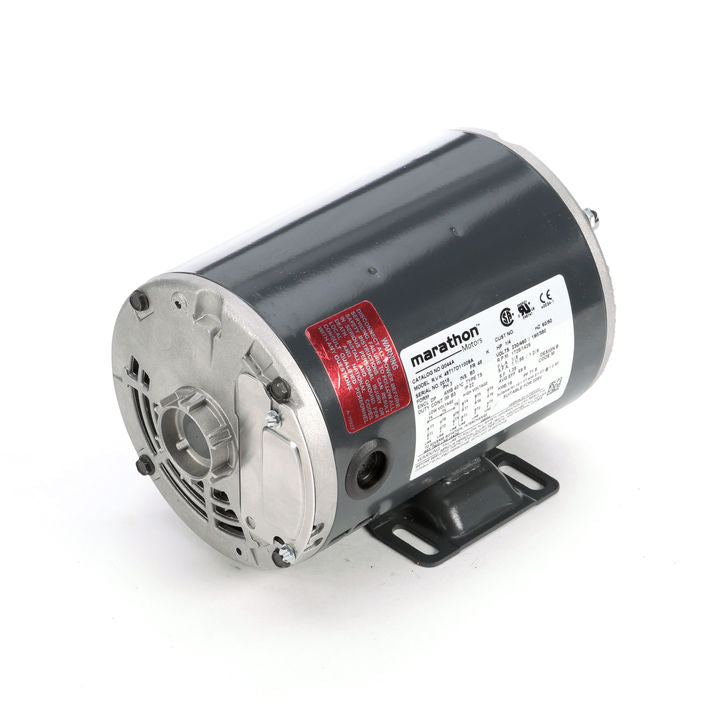

Marathon Electric G044A, 1/4 Hp, 1800 Rpm, 48 FR, 230/460 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, 048T17D11009

Marathon Electric G044A, 1/4 Hp, 1800 Rpm, 48 FR, 230/460 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, 048T17D11009

$607.00
$607.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$607.00 $576.65
Sale

G044A, 1/4 Hp, 1800 Rpm, 48 FR, 230/460 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, 048T17D11009

Engineering Data

60 Hertz
HP 1/4
Voltage 230/460
kW .19
FL Amps 1/.5
RPM 1800
FL Eff 69.5 %
SF 1.35

50 Hertz
HP 1/4
Voltage 190/380
kW .187
FL Amps 1/.5
RPM 1500
FL Eff N/A %
SF 1.35

Phase 3
Insulation Class B
Frame 48
Duty CONTINUOUS
Enclosure DP
Ambient 40
Mounting Rigid
NEMA Design B
Orientation HORIZONTAL
Starting Type LINE OR INVERTER
Assembly F1 ONLY
KVA Code M
Drive End Bearing BALL
IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6203
Opposite End Bearing Size 6203
Weight 18 LB lbs
Inverter Speed Range CONSTANT 2:1
CE Y CSA Y
UL Recognized Construction
Thermal Protection
