Industrial Motors

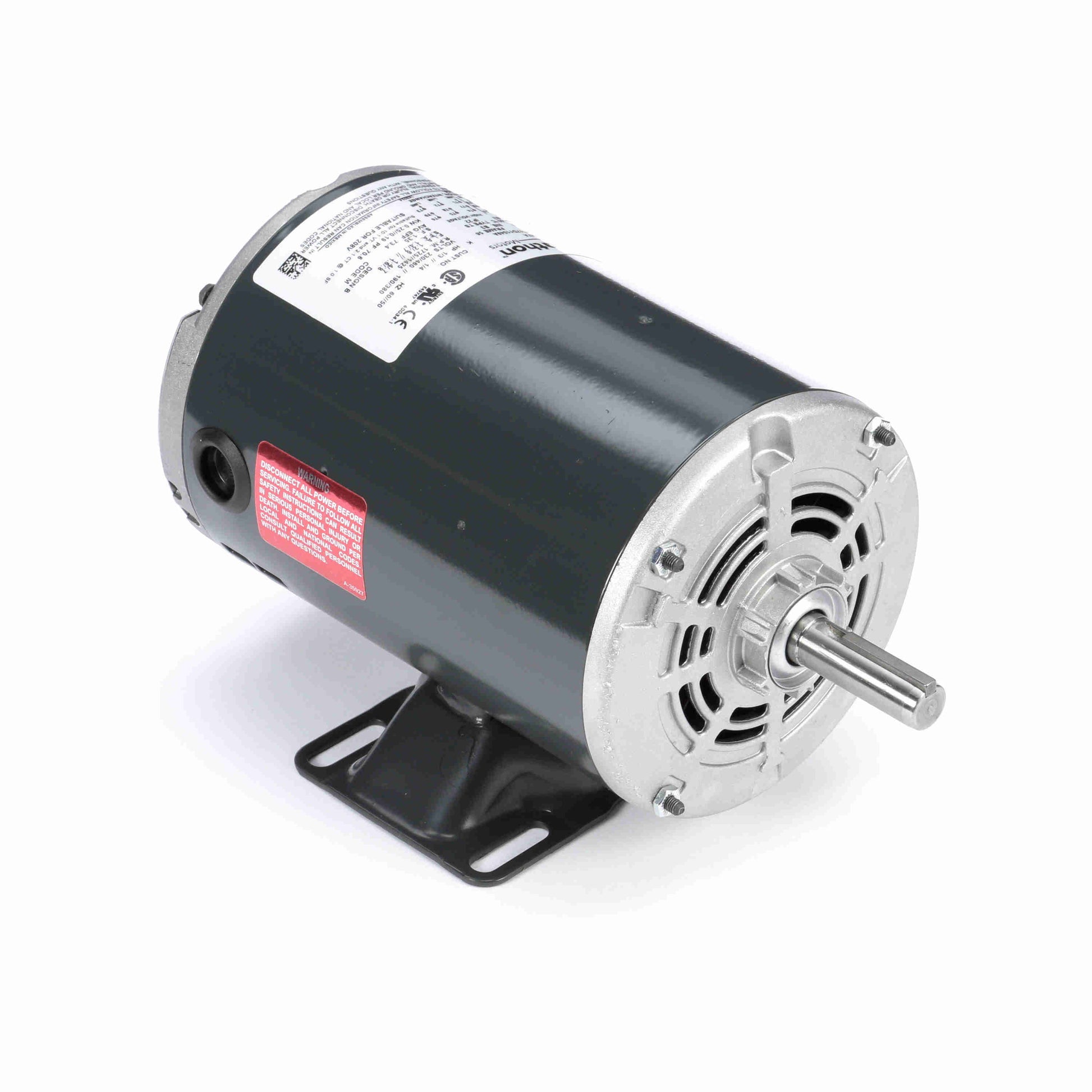

Marathon Electric G047A, 1/3 Hp, 1800 Rpm, 56 FR, 230/460 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No Over Load, 056T17D11049.

Marathon Electric G047A, 1/3 Hp, 1800 Rpm, 56 FR, 230/460 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No Over Load, 056T17D11049.

$672.00
$672.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$672.00 $638.40
Sale

G047A, 1/3 Hp, 1800 Rpm, 56 FR, 230/460 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No Over Load, 056T17D11049.

Engineering Data

60 Hertz
HP 1/3
Voltage 230/460
kW .25
FL Amps 1.2/.6
RPM 1800
FL Eff 73.4 %
SF 1.35

50 Hertz
HP 1/4
Voltage 190/380
kW .19
FL Amps 1.4/.7
RPM 1500
FL Eff N/A % SF 1.35

Phase 3
Insulation Class B
Frame 56
Duty CONTINUOUS
Enclosure DP
Ambient 40
Mounting Rigid NEMA
Design B
Orientation HORIZONTAL
Starting Type LINE OR INVERTER
Assembly F1 ONLY
KVA Code M
Drive End Bearing BALL
IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6203
Opposite End Bearing Size 6203
Weight 20 LB lbs
Inverter Speed Range CONSTANT 2:1
CE Y CSA Y
UL Recognized Construction
Thermal Protection
