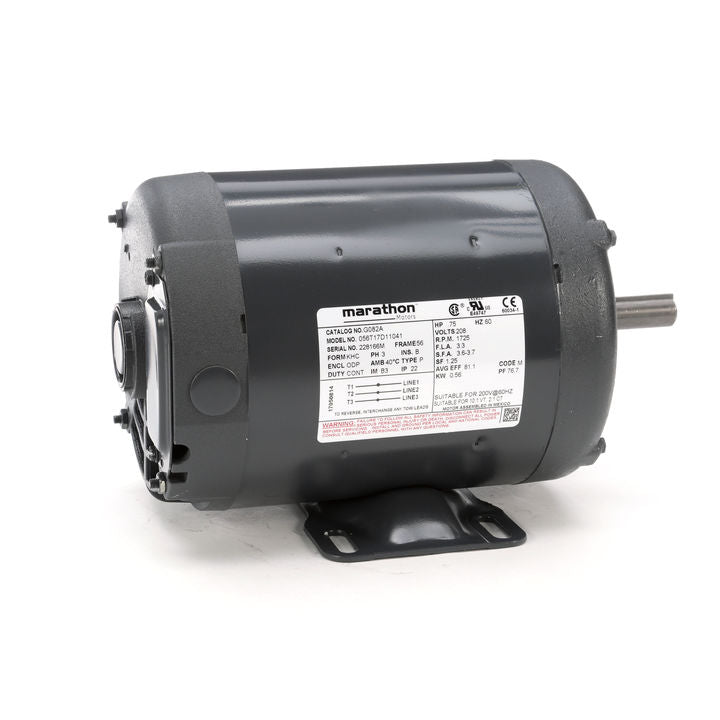

Marathon Electric G082A, 3/4 Hp, 1800 Rpm, 56 FR, 208 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, 056B11D15505

G082A, 3/4 Hp, 1800 Rpm, 56 FR, 208 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, 056B11D15505

General Specifications

Nameplate Specifications
Output HP : 0.75 Hp
Output KW : 0.56 kW
Frequency : 60 Hz
Voltage : 208 V
Current : 2.9 A
Speed : 1725 rpm
Service Factor : 1.25
Phase : 3
Efficiency : 81.1 %
Duty : Continous Insulation
Class : B Design
Code : B KVA
Code : K Frame : 56
Enclosure : Drip Proof Overload
Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : Y IP Code : 22
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 4
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T
Overall Length : 11.31 in
Frame Length : 8.25 in
Shaft Diameter : 0.625 in
Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 Out ODE Brkt Radial
UPC : 722856071088
Weight : 31.00 LB
