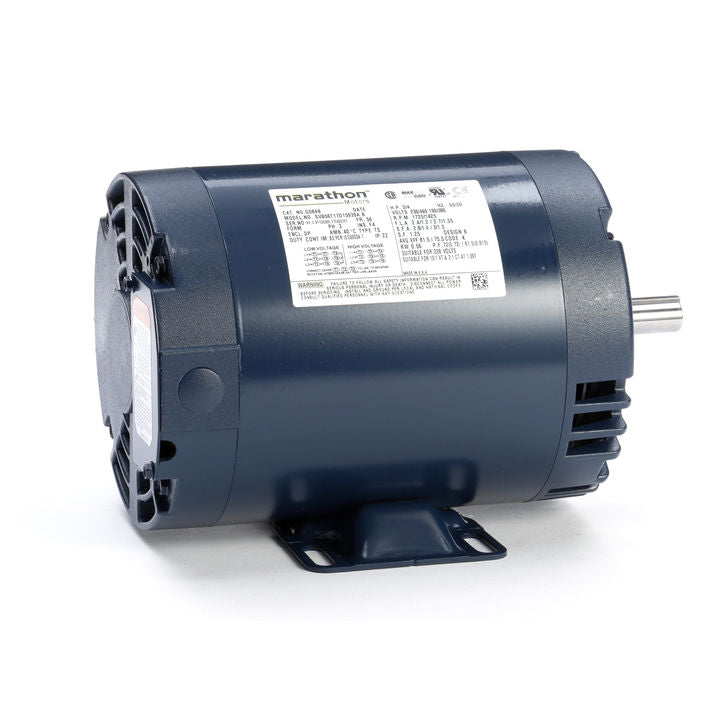

Marathon Electric G084B, 3/4 Hp, 1800 Rpm, 56 FR, 230/460 Vac, 3 PH. Rigid Base, Dripproof, General Purpose Motor, 56T17D15939.

G084B, 3/4 Hp, 1800 Rpm, 56 FR, 230/460 Vac, 3 PH. Rigid Base, Dripproof, General Purpose Motor, 56T17D15939.

Engineering Data

Output HP:0.75 Hp
Output KW:0.56 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:2.4/1.2 A
Speed:1725 rpm
Service Factor:1.25
Phase:3
Efficiency:81.5 %
Power Factor:72
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:K
Frame:56
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:5.7 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:10.87 in
Frame Length:6.00 in
Shaft Diameter:0.625 in
Shaft Extension:1.94 in
Assembly/Box Mounting:F1 ONLY
