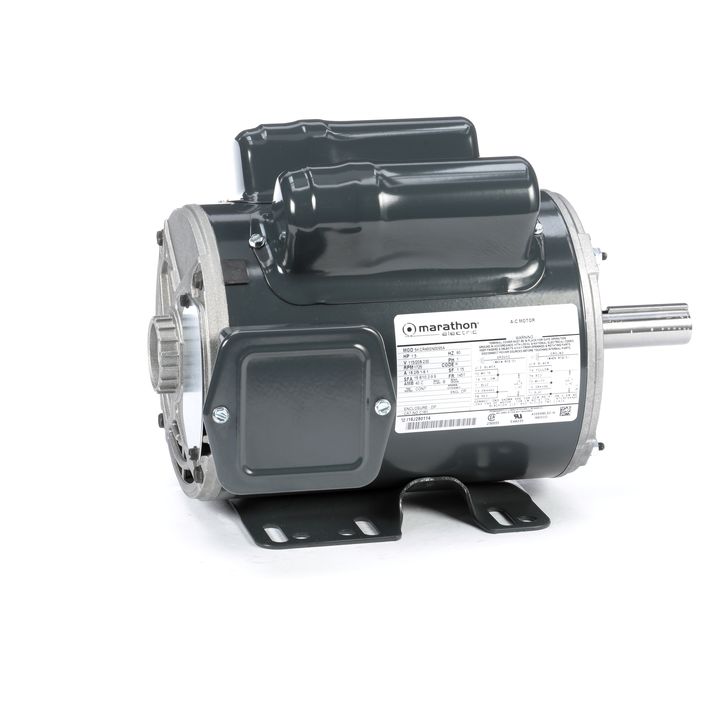

Marathon Electric G095A, 1/3 Hp, 1800 Rpm, 56 FR, 115/230 Vac, 1 PH, Dripproof, Rigid Base, General Purpose, Manual Over Load, 056B17D11034.

G095A, 1/3 Hp, 1800 Rpm, 56 FR, 115/230 Vac, 1 PH, Dripproof, Rigid Base, General Purpose, Manual Over Load, 056B17D11034.

Engineering Data

Output HP : 0.33 HP
Output KW : 0.25 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 3.8/1.9 A
Speed : 1725 RPM
Service Factor : 1.35
Phase : 1
Efficiency : 72.4 %
Duty : Continuous
Insulation Class : B
Design Code : NO DESIGN CODE
KVA Code : L
Frame : 56
Enclosure : Drip Proof
Overload Protector : Manual
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y CE : Y IP Code : 22
Technical Specifications
Electrical Type : Capacitor Start Capacitor Run
Starting Method : Across The Line
Poles : 4
Rotation : Selective Counterclockwise
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T
Overall Length : 10.97 in
Frame Length : 7.00 in
Shaft Diameter : 0.625 in
Shaft Extension : 1.97 in
