Industrial Motors

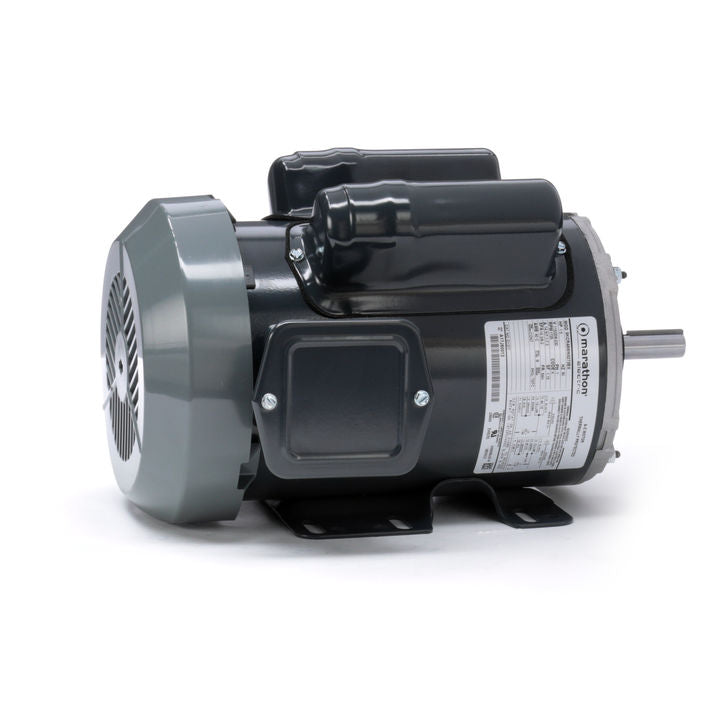

Marathon Electric G1377, 1 1/2 Hp, 1800 Rpm, 56H FR, 115/208-230 Vac, 1 PH, TEFC, Rigid Base, General Purpose, Auto Overload, 5KCR48WN0273X

Marathon Electric G1377, 1 1/2 Hp, 1800 Rpm, 56H FR, 115/208-230 Vac, 1 PH, TEFC, Rigid Base, General Purpose, Auto Overload, 5KCR48WN0273X

$1,159.00
$1,159.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,159.00 $1,101.05
Sale

G1377, 1 1/2 Hp, 1800 Rpm, 56H FR, 115/208-230 Vac, 1 PH, TEFC, Rigid Base, General Purpose, Auto Overload, 5KCR48WN0273X

Engineering Data

Output HP:1.5 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:115/208-230 V
Current:14.5,7.1-7.3 A
Speed:1725 rpm
Service Factor:1.15
Phase:1
Efficiency:73.6 %
Power Factor:0
Duty:Continuous
Insulation Class:B
KVA Code:K
Frame:56H
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:AUTO
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Yes
CE:N
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:SM
Poles:4
Rotation:Counterclockwise/Clockwise
Mounting:Rigid Base
Motor Orientation:ANY
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Overall Length:13.84 in
Frame Length:8.43 in
Shaft Diameter:0.63 in
Shaft Extension:1.88 in
