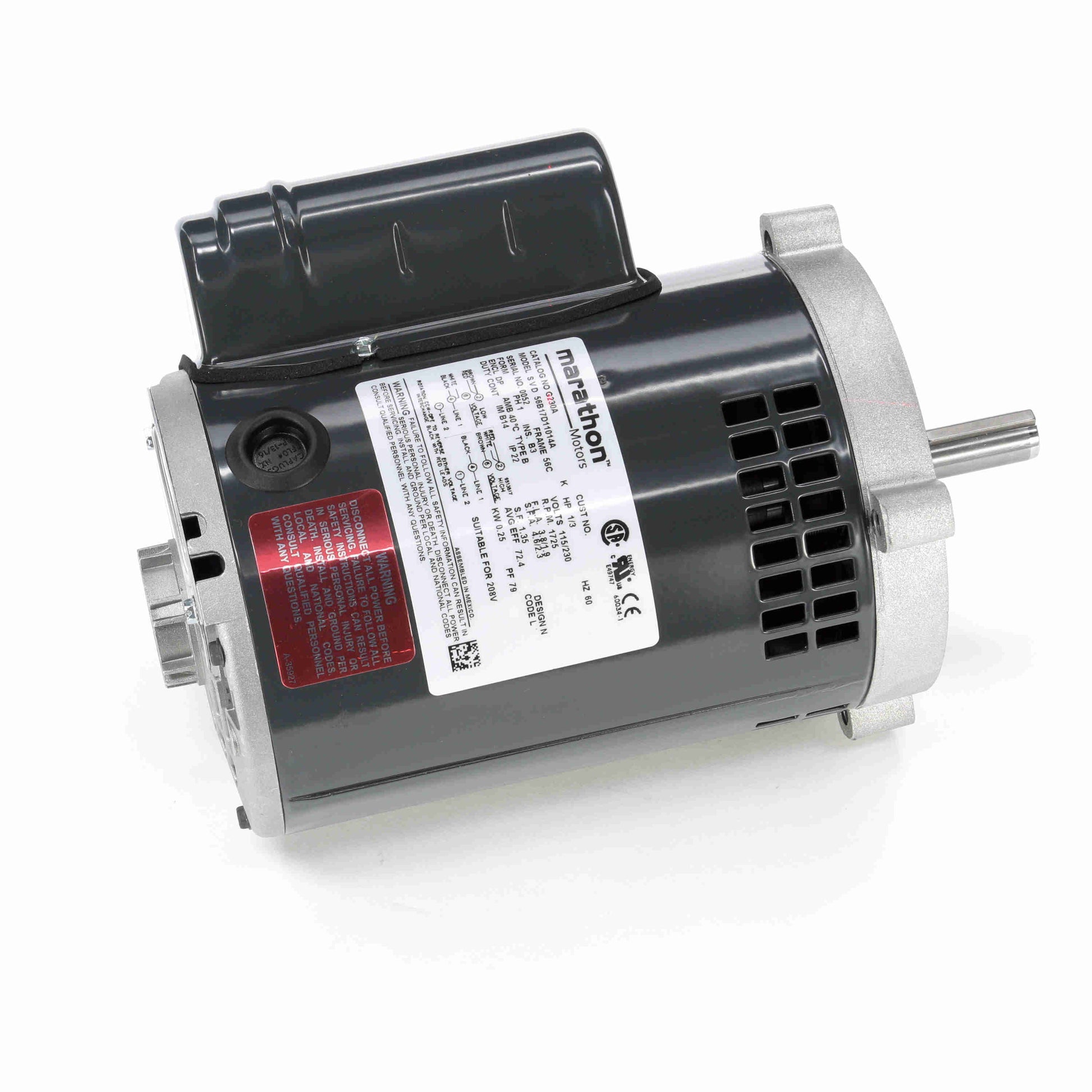

Marathon Electric G230A, 1/3 Hp, 1800 Rpm, 56C FH, 115/230 Vac, 1 PH, Dripproof, C-Face Footless, General Purpose, No Over Load, 056B17D11014

Marathon Electric G230A, 1/3 Hp, 1800 Rpm, 56C FH, 115/230 Vac, 1 PH, Dripproof, C-Face Footless, General Purpose, No Over Load, 056B17D11014

$804.00
$804.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$804.00 $763.80
Sale

G230A, 1/3 Hp, 1800 Rpm, 56C FH, 115/230 Vac, 1 PH, Dripproof, C-Face Footless, General Purpose, No Over Load, 056B17D11014

Engineering Data

60 Hertz
HP 1/3
Voltage 115/230
kW .246 FL Amps 3.8/1.9
RPM 1800
FL Eff 72.4 % SF 1.35

Phase 1
Insulation Class B
Frame 56C
Duty CONTINUOUS
Enclosure DP
Ambient 40
Mounting C-Face Footless
NEMA Design N
Orientation HORIZONTAL
Starting Type CAP START CAP RUN
Assembly F1 ONLY
KVA Code L
Drive End Bearing BALL
IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6203
Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 19 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection
