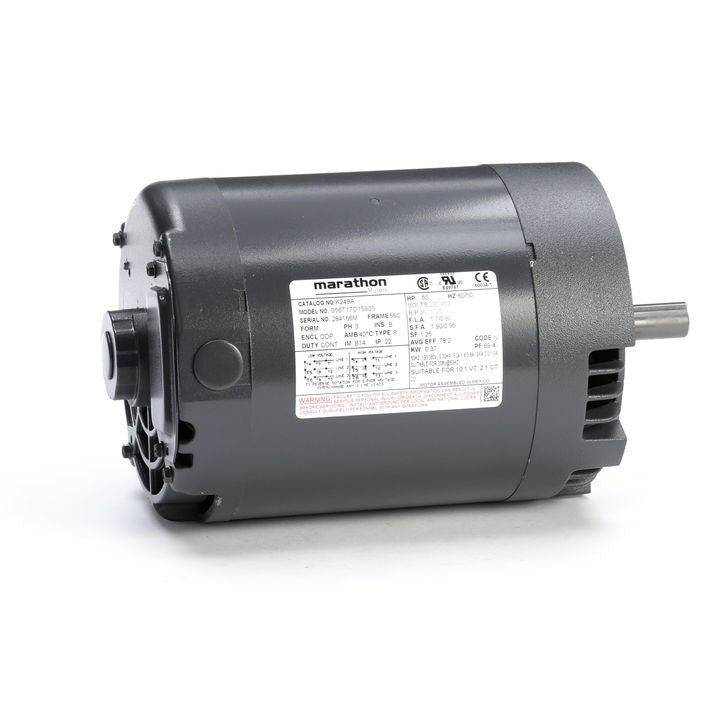

Marathon Electric G242A, 1/2 Hp, 1800 Rpm, 56C FR, 575 Vac, 3 PH, Dripproof, C-Face Footless, General Purpose, 56T17D11045.

G242A, 1/2 Hp, 1800 Rpm, 56C FR, 575 Vac, 3 PH, Dripproof, C-Face Footless, General Purpose, 56T17D11045.

Engineering Data

Output HP : 0.50 Hp
Output KW : 0.37 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 0.70 A
Speed : 1725 rpm
Service Factor : 1.25
Phase : 3
Efficiency : 78.2 %
Duty : Continuous
Insulation Class : B Design
Code : B KVA
Code : K
Frame : 56C
Enclosure : Drip Proof Overload
Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : Y IP Code : 22
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 4
Rotation : Reversible
Mounting : Round
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T Overall
Length : 11.31 in
Shaft Diameter : 0.625 in
Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 OUT ODE BRKT RADIAL
