Industrial Motors

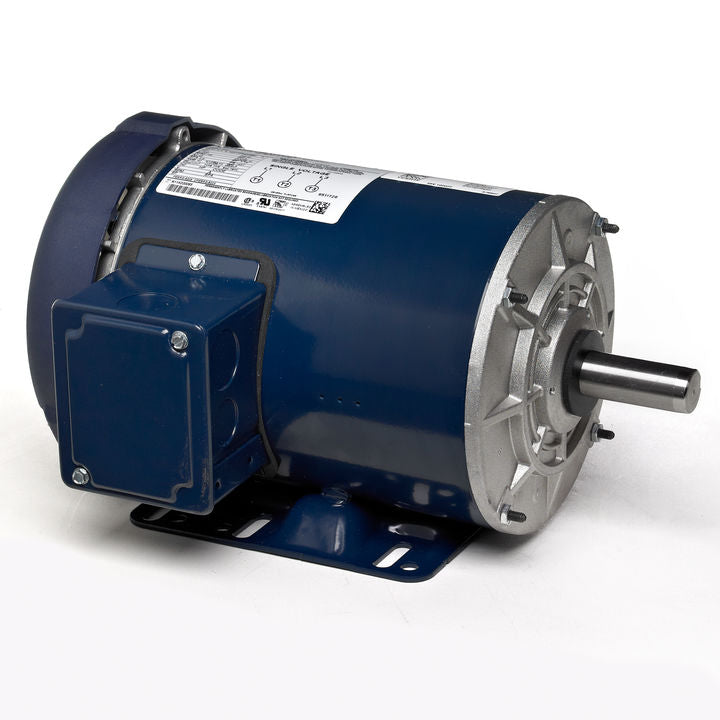

Marathon Electric G360A, 1 Hp, 1200 Rpm, 56H FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, 56T11F1505525

Marathon Electric G360A, 1 Hp, 1200 Rpm, 56H FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, 56T11F1505525

$1,224.00
$1,224.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,224.00 $1,162.80
Sale

G360A, 1 Hp, 1200 Rpm, 56H FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, 56T11F1505525

Engineering Data

Output HP  1 Hp
Output KW  .75 kW
Frequency  60 Hz
Voltage  230/460 V
Current  3.8/1.19 A
Speed  1140 rpm
Service Factor  1.15
Phases  3
Efficiency  82.5 %
Duty  CONTINUOUS
Insulation Class  B
Design Code  B
KVA Code  L
Frame  56H
Enclosure  TEFC
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6205
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Y
CE  Y
IP Code  43

Technical Specifications

Electrical Type  SQ CAGE IND RUN
Starting Method  ACROSS THE LINE
Poles  4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type T
Overall Length  13.3 in
Shaft Diameter  0.63 in
Shaft Extension  1.88 in
Assembly/Box Mounting  F1 ONLY
