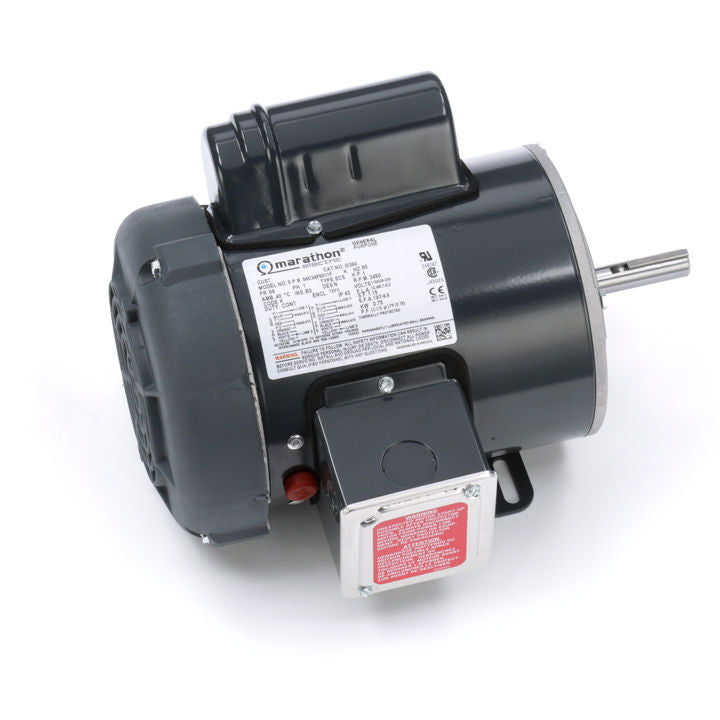

Marathon Electric G390, 1 Hp, 3600 Rpm, 56 FR, 115/208-230 Vac, 1 PH, TEFC, Rigid Base, General Purpose, Manual Overload, 56C34F5311.

G390, 1 Hp, 3600 Rpm, 56 FR, 115/208-230 Vac, 1 PH, TEFC, Rigid Base, General Purpose, Manual Overload, 56C34F5311.

Engineering Data

Output HP : 1 HP
Output KW : 0.75 kW
Frequency : 60 Hz
Voltage : 115/208-230 V
Current : 12.4/6.7-6.2 A
Speed : 3450 RPM
Service Factor : 1.15
Phase : 1
Efficiency : 72 %
Duty : Continuous
Insulation Class : B
Design Code : N
KVA Code : K
Frame : 56
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : Manual
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Capacitor Start Induction Run
Starting Method : Across The Line
Poles : 2
Rotation : Selective Counterclockwise
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : NEMA 56
Overall Length : 12.32 in
Frame Length : 7.06 in
Shaft Diameter : 0.625 in
Shaft Extension : 2.32 in
Assembly/Box Mounting : F1 Only
