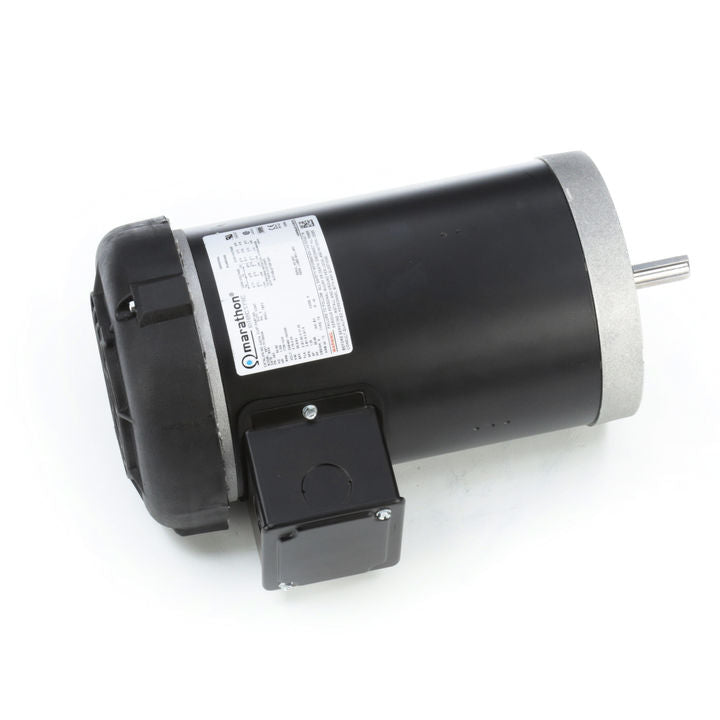

Marathon Electric G527A, 1 Hp, 1800 Rpm, 56C FR, 230/460 Vac, 3 PH, TEFC, C-Face Less Base, General Purpose, 56T17F15660.

G527A, 1 Hp, 1800 Rpm, 56C FR, 230/460 Vac, 3 PH, TEFC, C-Face Less Base, General Purpose, 56T17F15660.

Engineering Data

Nameplate Specifications

Output HP  1 Hp
Output KW  .75 kW
Frequency  60 Hz
Voltage  230/460 V
Current  3.3/1.65 A
Speed  1725 rpm
Service Factor  1.25
Phases  3
Efficiency  85.5 %
Duty  CONTINUOUS
Insulation Class  B
Design Code  F
KVA Code  P
Frame  56C
Enclosure  TEFC
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6205
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Y
CE  Y
IP Code  43

Technical Specifications

Electrical Type  SQ CAGE IND RUN
Starting Method  ACROSS THE LINE
Poles  4
Rotation  REV
Mounting  ROUND
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type  STANDARD 56
Overall Length  15.15 in
Frame Length  8.65 in
Shaft Diameter  0.63 in
Shaft Extension  1.88 in
Assembly/Box Mounting  F1 ONLY
