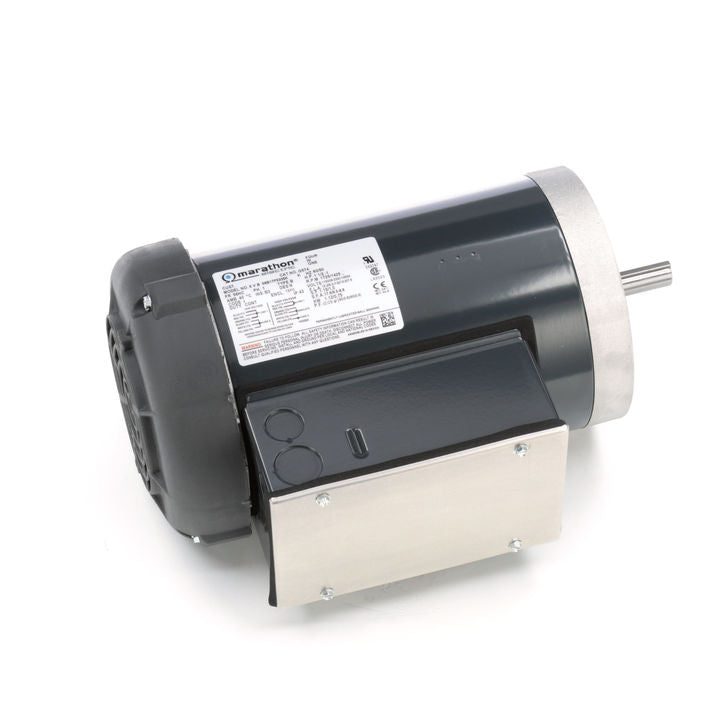

Marathon Electric G574, 1 1/2 Hp, 1800 Rpm, 56HC FR, 115/208-230 Vac, 1 PH, TEFC, C-Face, Removable Base, General Purpose, No Overload, 56B17F5305.

G574, 1 1/2 Hp, 1800 Rpm, 56HC FR, 115/208-230 Vac, 1 PH, TEFC, C-Face, Removable Base, General Purpose, No Overload, 56B17F5305.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:115/208-230 V
Current:15.2/8.2-7.6 A
Speed:1725 rpm
Service Factor:1.15
Phase:1
Efficiency:80 %
Power Factor:80
Duty:Continuous
Insulation Class:B
Design Code:N
KVA Code:J
Frame:56HC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °CDrive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:YCE:YIP Code:43
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Bolt-on Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:13.81 in
Frame Length:8.56 in
Shaft Diameter:0.625 in
Shaft Extension:2.06 in
Assembly/Box Mounting:F1 ONLY
