Industrial Motors

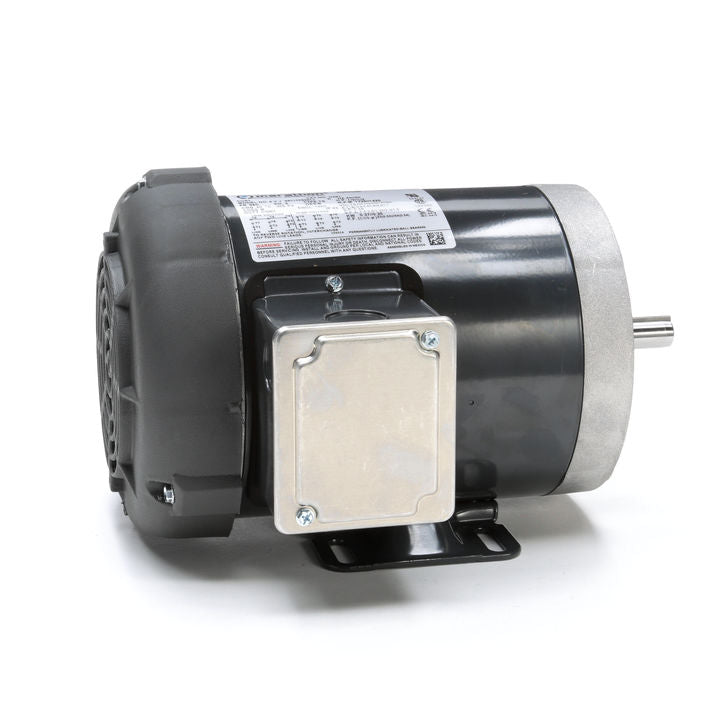

Marathon Electric G581, 1/2 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 056T17F5321.

Marathon Electric G581, 1/2 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 056T17F5321.

$840.00
$840.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$840.00 $798.00
Sale

G581, 1/2 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 056T17F5321.

Engineering Data

60 Hertz
HP 1/2
Voltage 208-230/460
kW .37 FL Amps 2.3-2.4/1.2
RPM 1800
FL Eff 72.1 % SF 1.15
50 Hertz
HP 1/3 Voltage 190/380
kW .246 FL Amps 2.2/1.1
RPM 1500
FL Eff 67 % SF 1.15

Phase 3
Insulation Class F
Frame 56C
uty CONTINUOUS
Enclosure TEFC
Ambient 40
Mounting C-Face - Removable Base NEMA
Design B
Orientation HORIZONTAL OR UP OR DOWN
Starting Type ACROSS THE LINE
Assembly F1 ONLY KVA Code M
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size N/A
Opposite End Bearing Size N/A
Weight 23.5 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection
