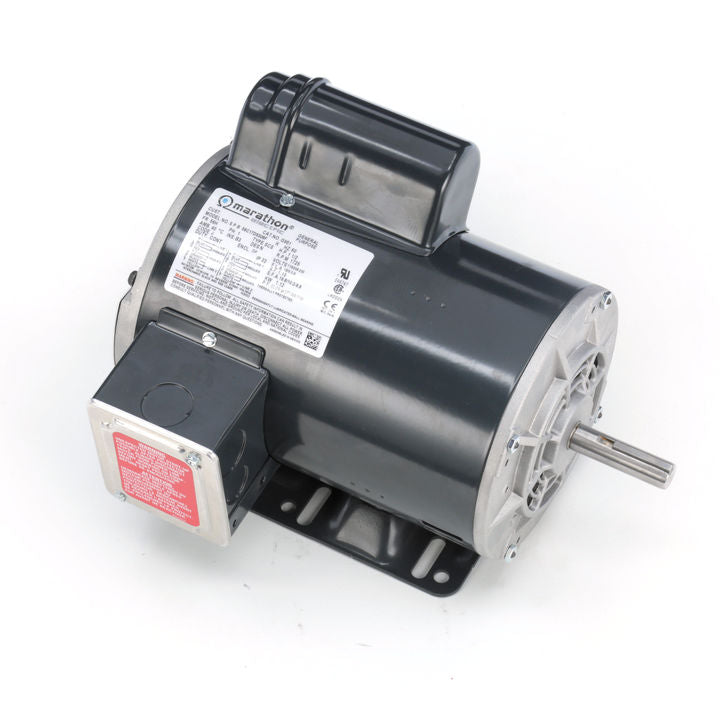

Marathon Electric G951, 1 1/2 Hp, 1800 Rpm, 56H FR, 115/208-230 Vac, 1 PH, Air Compressor, Dripproof, Rigid Base, Manual Overload, 56C17D5308

G951, 1 1/2 Hp, 1800 Rpm, 56H FR, 115/208-230 Vac, 1 PH, Air Compressor, Dripproof, Rigid Base, Manual Overload, 56C17D5308.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:115/208-230 V
Current:18.0/9.3-9.0 A
Speed:1725 rpm
Service Factor:1.15
Phase:1
Efficiency:77 %
Power Factor:71.3
Duty:Continuous
Insulation Class:B
Design Code:N
KVA Code:J
Frame:56H
Enclosure:Drip Proof
Thermal Protection:Manual
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Capacitor Start Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:.29 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:12.44 in
Frame Length:8.56 in
Shaft Diameter:0.625 in
Shaft Extension:2.32 in
Assembly/Box Mounting:F1 ONLY
