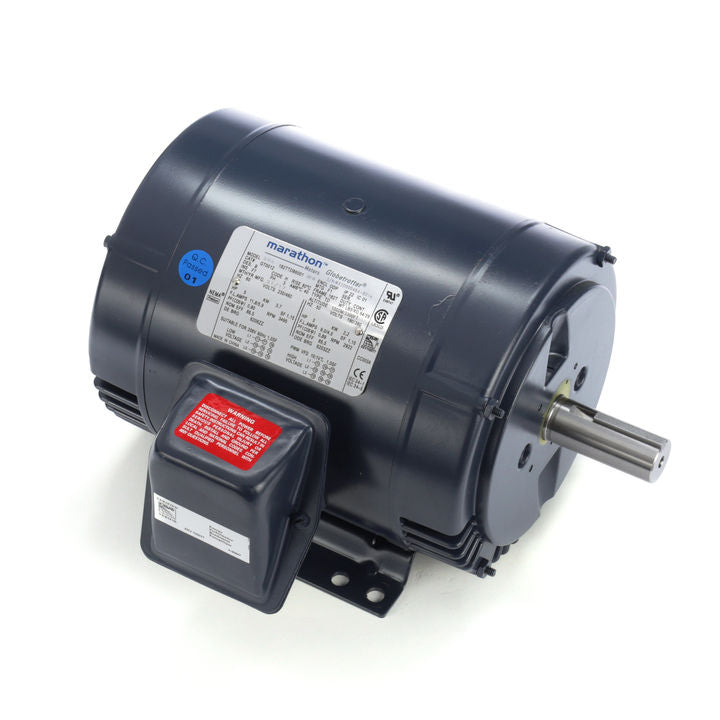

GT0013A, 5 Hp, 1800 Rpm, 184T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 184TTDBD6026.

GT0013A, 5 Hp, 1800 Rpm, 184T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 184TTDBD6026. Engineering Data Output HP:5 Hp Output KW:3.7 kW Frequency:60 Hz Voltage:230/460 V Current:12.6/6.3 A Speed:1765 rpm Service Factor:1.15 Phase:3 Efficiency:89.5 % Power Factor:82.5 Duty:Continuous Insulation Class:F Design Code:B KVA Code:J Frame:184T Enclosure:Drip Proof Thermal Protection:No Ambient Temperature:40 °C Drive End Bearing Size:6206 Opp Drive End Bearing Size:6203 UL:Recognized CSA:Y CE:Y IP Code:22 Technical Specifications Electrical Type:Squirrel Cage Inverter Rated Starting Method:Line Or Inverter Poles:4 Rotation:Reversible Resistance Main:2.688 Ohms Mounting:Rigid Base Motor Orientation:Horizontal Drive End Bearing:Ball Opp Drive End Bearing:Ball Frame Material:Rolled Steel Shaft Type:T Overall Length:13.25 in Frame Length:8.26 in Shaft Diameter:1.125 in Shaft Extension:2.75 in Assembly/Box Mounting:F1/F2 CAPABLE
