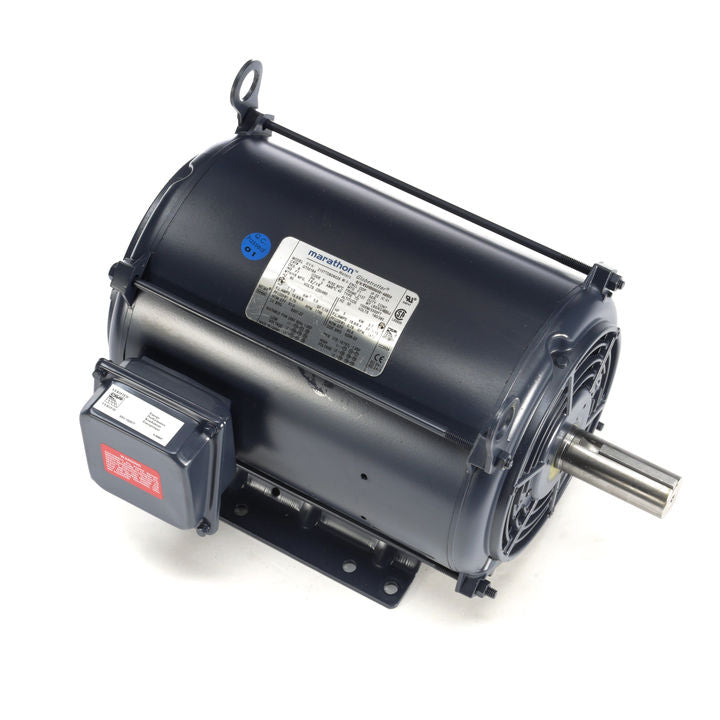

Marathon Electric GT0016A, 7 1/2 Hp, 1800 Rpm, 213T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 213TTDBD6026,

Marathon Electric GT0016A, 7 1/2 Hp, 1800 Rpm, 213T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 213TTDBD6026,

$794.19
$794.19
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$794.19 $754.49
Sale

GT0016A, 7 1/2 Hp, 1800 Rpm, 213T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 213TTDBD6026,

Engineering Data

Output HP 7.5 Hp
Output KW  5.6 kW
Frequency  60 Hz
Voltage  230/460 V
Current  19.8/9.9 A
Speed  1766 rpm
Service Factor  1.15
Phases  3
Efficiency  91 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  H
Frame  213T
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6307
Opp Drive End Bearing Size  6206
UL  Recognized
CSA  Y
CE  Y
IP Code  22

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method LINE OR INVERTER
Poles  4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type  T
Overall Length  17.52 in
Shaft Diameter  1.38 in
Shaft Extension  3.37 in
Assembly/Box Mounting  F1/F2 CAPABALE
