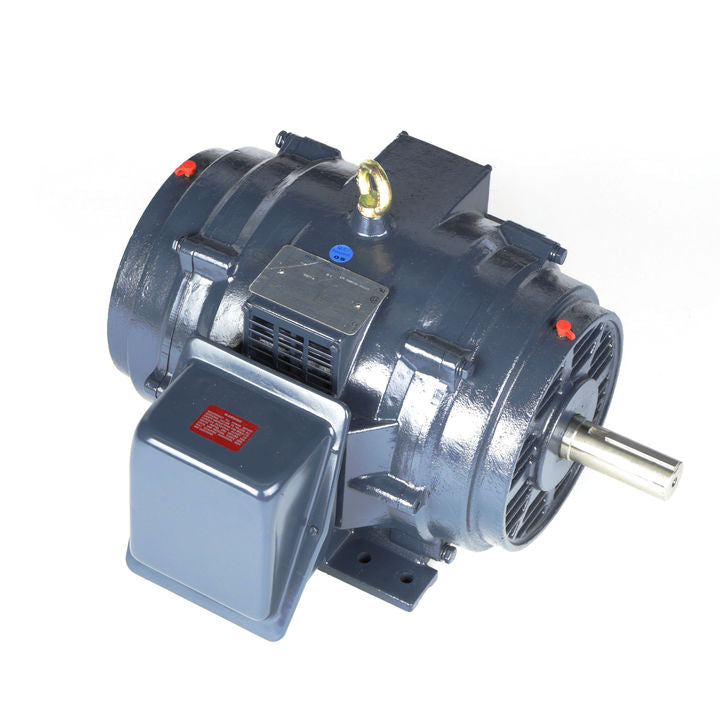

Marathon Electric GT0032, 30 Hp, 1200 Rpm, 326T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 326TTDCA6076.

GT0032, 30 Hp, 1200 Rpm, 326T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 326TTDCA6076.

Engineering Data

Nameplate Specifications

Output HP 30 Hp
Output KW  22.4 kW
Frequency  60 Hz
Voltage  230/460 V
Current  81/40.5 A
Speed  1190 rpm
Service Factor  1.15
Phases  3
Efficiency  93.6 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  G
Frame  326T
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6312
Opp Drive End Bearing Size  6311
UL  Recognized
CSA  Y
CE  Y
IP Code  12

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method Y START D RUN OR INV
Poles  6
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  T
Overall Length  29.73 in
Shaft Diameter  2.13 in
Shaft Extension  5.25 in
Assembly/Box Mounting  F1/F2 CAPABALE
