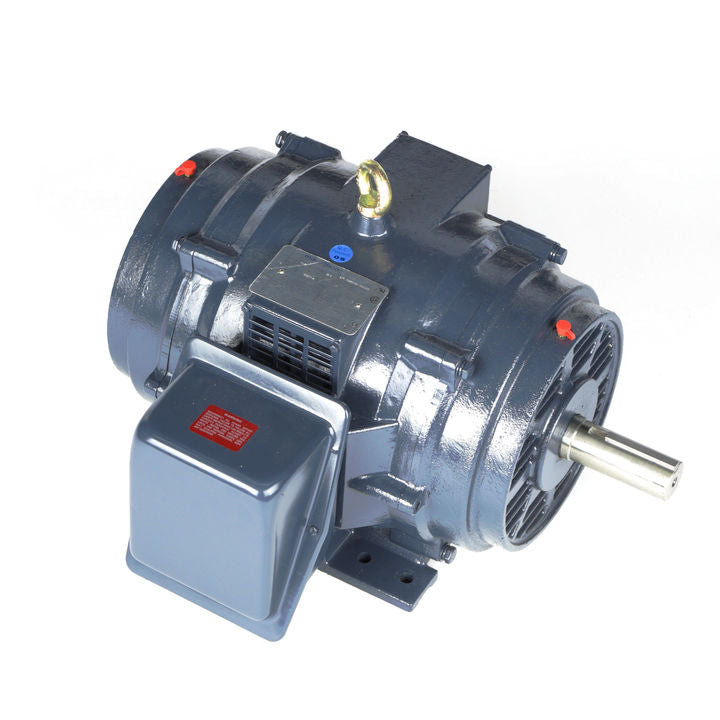

Marathon Electric GT0034, 40 Hp, 1800 Rpm, 324T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 324TTDCA6026.

GT0034, 40 Hp, 1800 Rpm, 324T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 324TTDCA6026.

Engineering Data

Nameplate Specifications

Output HP 40 Hp
Output KW  30 kW
Frequency  60 Hz
Voltage  230/460 V
Current  95/47.5 A
Speed  1780 rpm
Service Factor  1.15
Phases  3
Efficiency  94.5 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  G
Frame  324T
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6312
Opp Drive End Bearing Size  6311
UL  Recognized
CSA  Y
CE  Y
IP Code  23

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method PWS & Y D RUN OR INV
Poles  4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  T
Overall Length  28.55 in
Shaft Diameter  2.13 in
Shaft Extension  5.25 in
Assembly/Box Mounting  F1/F2 CAPABALE
