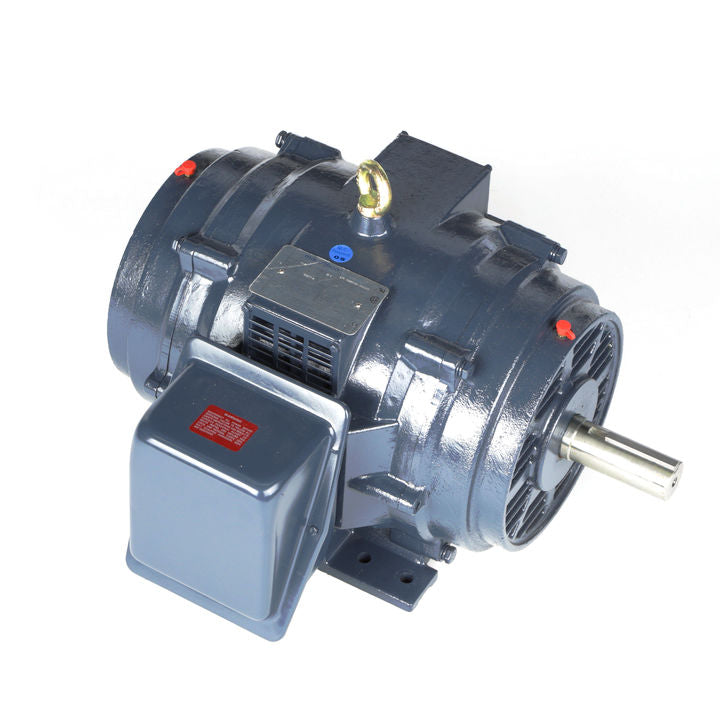

Marathon Electric GT0035, 40 Hp, 1200 Rpm, 364T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 364TTDCB6086

GT0035, 40 Hp, 1200 Rpm, 364T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 364TTDCB6086

Engineering Data

Nameplate Specifications

Output HP 40 Hp
Output KW  30 kW
Frequency  60 Hz
Voltage  230/460 V
Current  97/48.5 A
Speed  1188 rpm
Service Factor  1.15
Phases  3
Efficiency  94.1 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  F
Frame  364T
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6314
Opp Drive End Bearing Size  6313
UL  Recognized
CSA  Y
CE  Y
IP Code  12

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method PWS & Y D RUN OR INV
Poles  6
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  T
Overall Length  31.69 in
Shaft Diameter  2.38 in
Shaft Extension  5.87 in
Assembly/Box Mounting  F1/F2 CAPABALE
