Industrial Motors

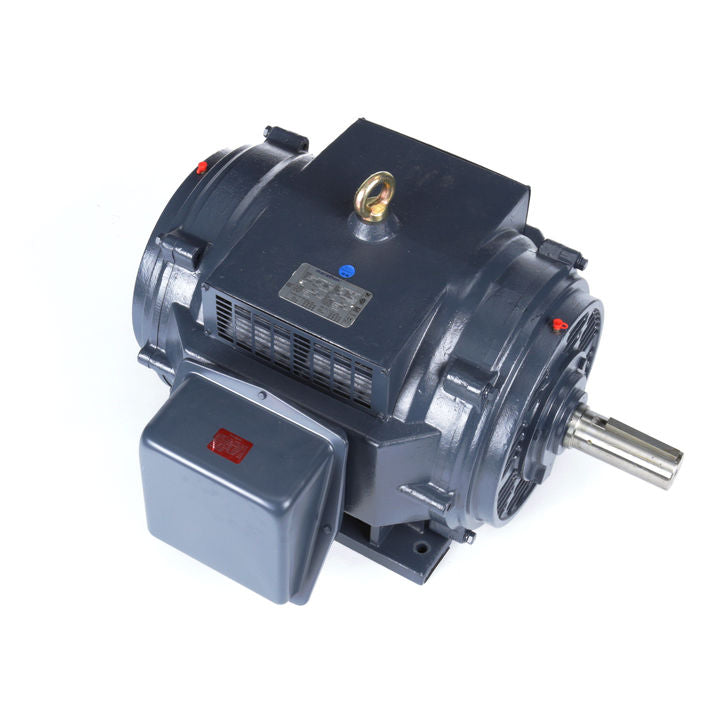

Marathon Electric GT0041, 60 Hp, 1200 Rpm, 404T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 404TTDC6086.

Marathon Electric GT0041, 60 Hp, 1200 Rpm, 404T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 404TTDC6086.

$8,801.00
$8,801.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$8,801.00 $8,360.95
Sale

GT0041, 60 Hp, 1200 Rpm, 404T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 404TTDC6086.

Engineering Data

Output HP 60 Hp
Output KW  45 kW
Frequency  60 Hz
Voltage  230/460 V
Current  144/72 A
Speed  1190 rpm
Service Factor  1.15
Phases  3
Efficiency  94.5 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  G
Frame  404T
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6316
Opp Drive End Bearing Size  6315
UL  Recognized
CSA  Y
CE  Y
IP Code  12

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method PWS & Y D RUN OR INV
Poles 6
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  T
Overall Length  37.2 in
Shaft Diameter  2.88 in
Shaft Extension  7.25 in
Assembly/Box Mounting  F1/F2 CAPABALE
