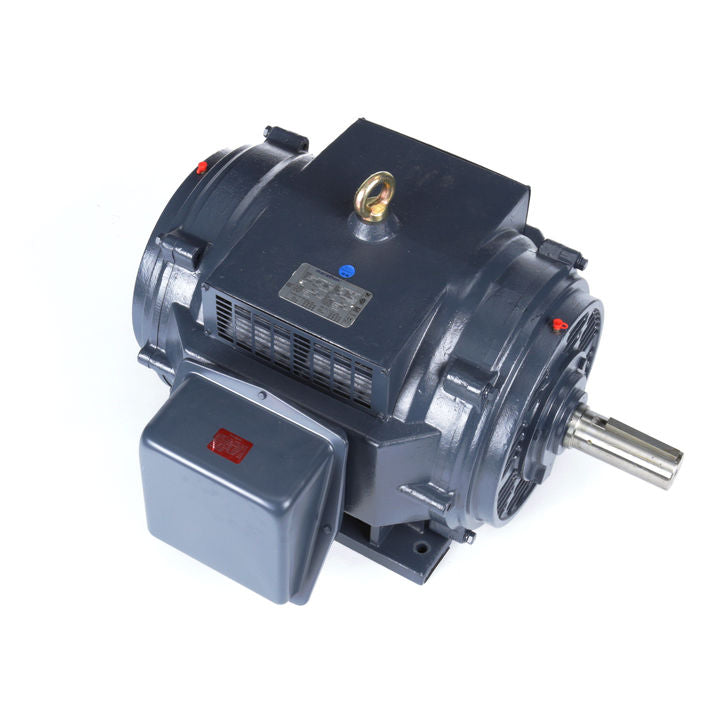

Marathon Electric GT0046A, 100 Hp, 1800 Rpm, 404T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 404TTDCD6060

GT0046A, 100 Hp, 1800 Rpm, 404T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 404TTDCD6060

Engineering Data

Output HP:100 Hp
Output KW:75.0 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:228.0/114.0 A
Speed:1788 rpm
Service Factor:1.15
Phase:3
Efficiency:95.4 %
Power Factor:86
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:404T
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6316
Opp Drive End Bearing Size:6315
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Wye Start Delta Run Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:.055 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:T
Overall Length:37.20 in
Shaft Diameter:2.875 in
Shaft Extension:7.25 in
Assembly/Box Mounting:F1/F2 CAPABLE
