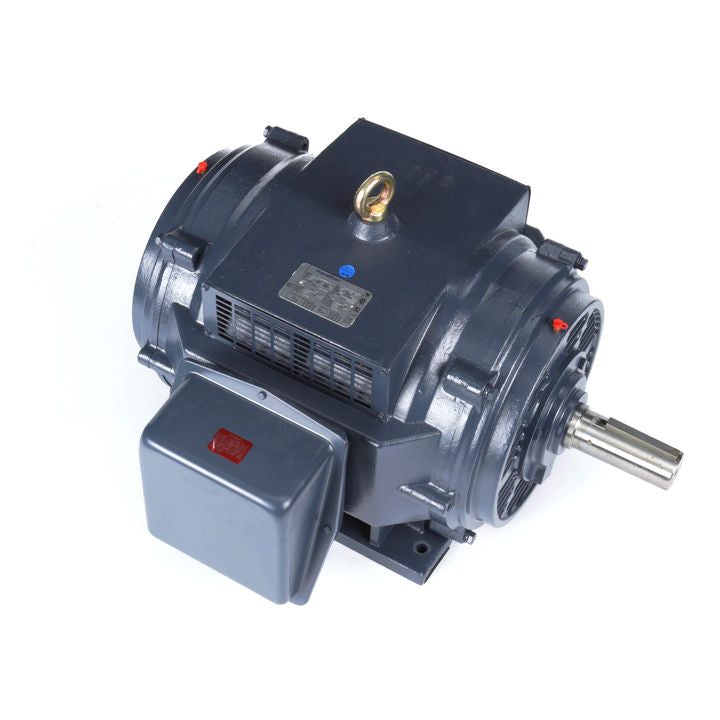

Marathon Electric GT0047A, 100 Hp, 1200 Rpm, 444T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 444TTDCD6077.

GT0047A, 100 Hp, 1200 Rpm, 444T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 444TTDCD6077.

Engineering Data

Output HP:100 Hp
Output KW:75.0 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:232.0/116.0 A
Speed:1190 rpm
Service Factor:1.15
Phase:3
Efficiency:95 %
Power Factor:85
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:F
Frame:444T
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6319
Opp Drive End Bearing Size:6317
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Part Wdg Start & Wye Start Delta Run Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:.0576 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:T
Overall Length:44.57 in
Shaft Diameter:3.375 in
Shaft Extension:8.5 in
Assembly/Box Mounting:F1/F2 CAPABLE
