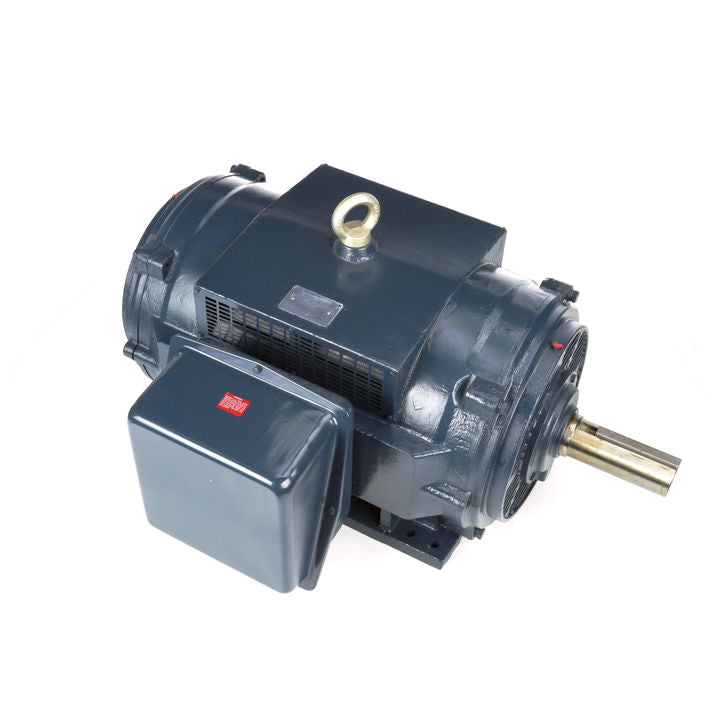

Marathon Electric GT0048A, 125 Hp, 3600 Rpm, 404TS FR, 460 PWS Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 404TSTDCD6001

GT0048A, 125 Hp, 3600 Rpm, 404TS FR, 460 PWS Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 404TSTDCD6001

Engineering Data

Output HP:125 Hp
Output KW:93.0 kW
Frequency:60/50 Hz
Voltage:460 V
Current:139.0 A
Speed:3575 rpm
Service Factor:1.15
Phase:3
Efficiency:94.1 %
Power Factor:89.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:404TS
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6313
Opp Drive End Bearing Size:6313
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Part Wdg Start Or Inverter
Poles:2
Rotation:Reversible
Resistance Main:.053 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:TS
Overall Length:33.86 in
Shaft Diameter:2.125 in
Shaft Extension:4.25 in
Assembly/Box Mounting:F1/F2 CAPABLE
