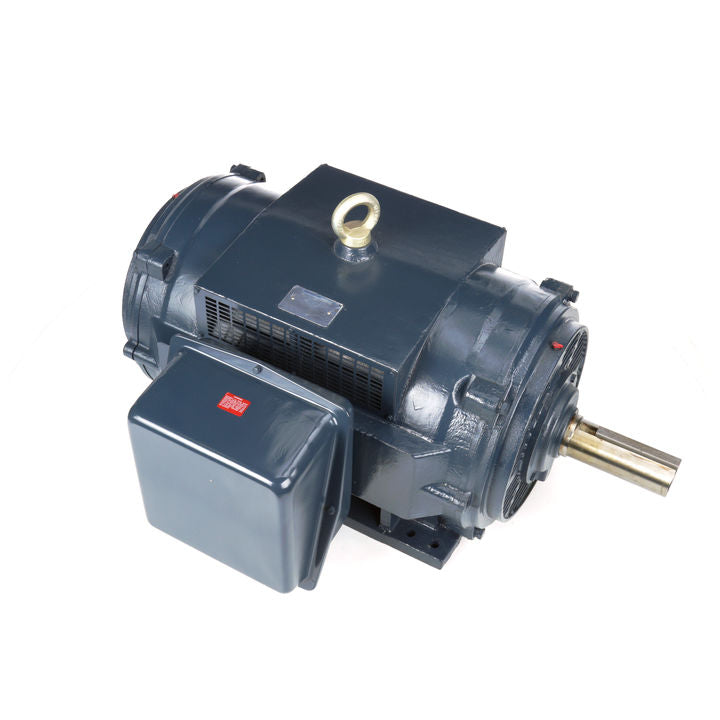

Marathon Electric GT0049A, 125 Hp, 1800 Rpm, 405T FR, 460 PWS Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 405TTDCD6060.

GT0049A, 125 Hp, 1800 Rpm, 405T FR, 460 PWS Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 405TTDCD6060.

Engineering Data

Output HP:125 Hp
Output KW:93.0 kW
Frequency:60/50 Hz
Voltage:460 V
Current:142.0 A
Speed:1785 rpm
Service Factor:1.15
Phase:3
Efficiency:95.4 %
Power Factor:86.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:405T
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6316
Opp Drive End Bearing Size:6315
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Part Wdg Start Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:.044 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:T
Overall Length:38.78 in
Shaft Diameter:2.875 in
Shaft Extension:7.25 in
Assembly/Box Mounting:F1/F2 CAPABLE
