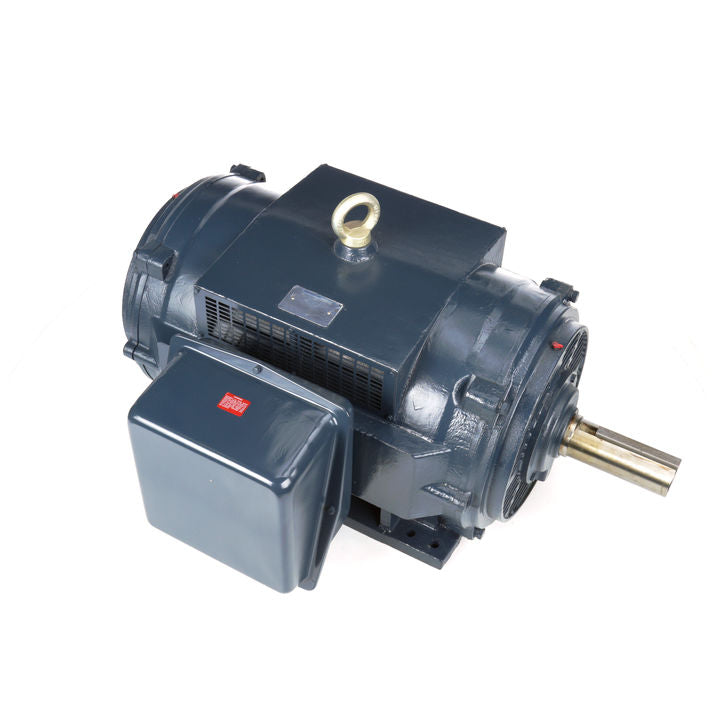

Marathon Electric GT0050, 125 Hp, 1200 Rpm, 445T FR, 460 PWS Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 445TTDC16076.

GT0050, 125 Hp, 1200 Rpm, 445T FR, 460 PWS Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 445TTDC16076.

Engineering Data

Nameplate Specifications

Output HP 125 Hp
Output KW  93 kW
Frequency  60 Hz
Voltage  460 V
Current  145 A
Speed  1190 rpm
Service Factor  1.15
Phases  3
Efficiency  95 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  G
Frame  445TS
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6319
Opp Drive End Bearing Size  6317
UL  Recognized
CSA  Y
CE  Y
IP Code  12

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  PWS OR INVERTER
Poles  6
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  TS
Overall Length  44.57 in
Shaft Diameter  3.38 in
Shaft Extension  8.5 in
Assembly/Box Mounting  F1/ F2 CAPABLE
