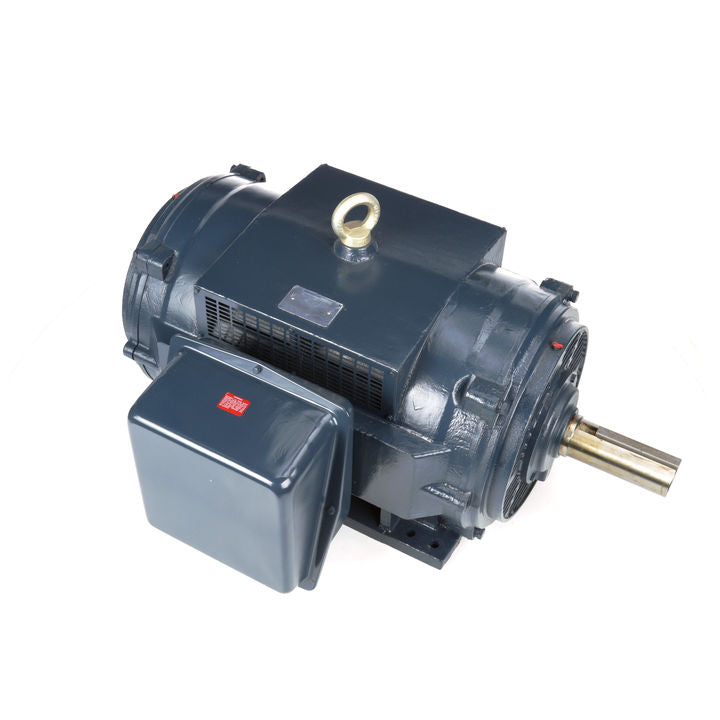

Marathon Electric GT0056A, 200 Hp, 1200 Rpm, 449T FR, 460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 449TTDCD6076.

GT0056A, 200 Hp, 1200 Rpm, 449T FR, 460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 449TTDCD6076.

Engineering Data

Output HP:200 Hp
Output KW:149.0 kW
Frequency:60 Hz
Voltage:460 V
Current:230.0 A
Speed:1188 rpm
Service Factor:1.15
Phase:3
Efficiency:95.4 %
Power Factor:85.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:F
Frame:449T
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6319
Opp Drive End Bearing Size:6317
UL:Recognized
CSA:Y
CE:YIP Code:12
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Part Wdg Start Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:.025 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:T
Overall Length:49.69 in
Frame Length:31.10 in
Shaft Diameter:3.375 in
Shaft Extension:8.5 in
Assembly/Box Mounting:F1/F2 CAPABLE
