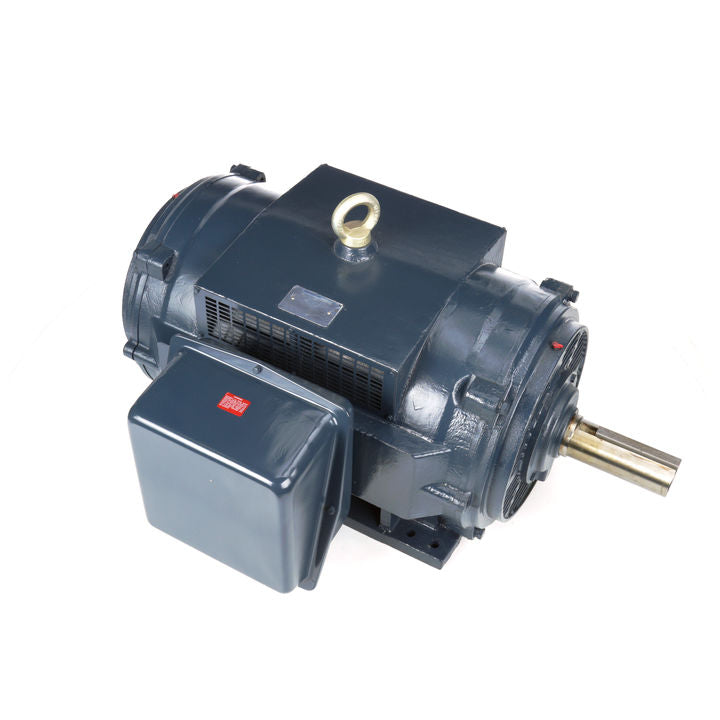

Marathon Electric GT0057, 7 1/2 Hp, 1200 Rpm, 254T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 254TTDBD6076.

GT0057, 7 1/2 Hp, 1200 Rpm, 254T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 254TTDBD6076.

Engineering Data

Output HP:7.50 Hp
Output KW:5.6 kW
Frequency:60 Hz
Voltage:230/460 V
Current:20.2/10.1 A
Speed:1182 rpm
Service Factor:1.15
Phase:3
Efficiency:90.2 %
Power Factor:77
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:H
Frame:254T
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6309
Opp Drive End Bearing Size:6208
UL:Recognized
CSA:YCE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:1.659 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:22.64 in
Frame Length:10.62 in
Shaft Diameter:1.625 in
Shaft Extension:4 in
Assembly/Box Mounting:F1/F2 CAPABLE
