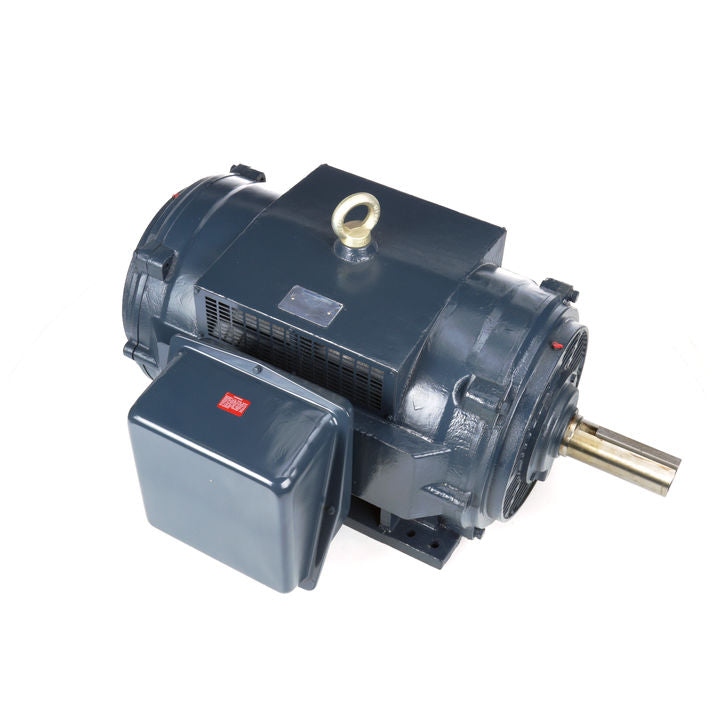

Marathon Electric GT0070, 30 Hp, 1800 Rpm, 286TS FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 286TSTDBD6026.

GT0070, 30 Hp, 1800 Rpm, 286TS FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 286TSTDBD6026.

Engineering Data

Output HP:30 Hp
Output KW:22.4 kW
Frequency:60 Hz
Voltage:230/460 V
Current:72.5/36.0 A
Speed:1775 rpm
Service Factor:1.15
Phase:3
Efficiency:94.1 %
Power Factor:83.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:286TS
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6311
Opp Drive End Bearing Size:6210
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Wye Start Delta Run Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:.289 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:TS
Overall Length:25.72 in
Frame Length:13.97 in
Shaft Diameter:1.625 in
Shaft Extension:3.25 in
Assembly/Box Mounting:F1/F2 CAPABLE
