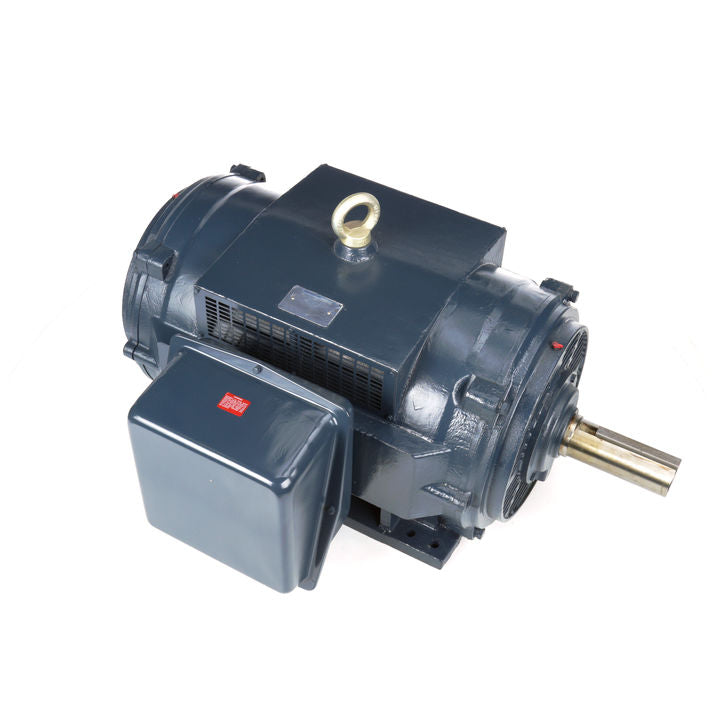

Marathon Electric GT0071, 30 Hp, 1200 Rpm, 326T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 326TTDBD6076.

GT0071, 30 Hp, 1200 Rpm, 326T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 326TTDBD6076.

Engineering Data

Output HP:30 Hp
Output KW:22.4 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:75.0/37.5 A
Speed:1188 rpm
Service Factor:1.15
Phase:3
Efficiency:93.6 %
Power Factor:79.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:326T
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6312
Opp Drive End Bearing Size:6311
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Wye Start Delta Run Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:.246 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:29.73 in
Shaft Diameter:2.125 in
Shaft Extension:5.25 in
Assembly/Box Mounting:F1/F2 CAPABLE
