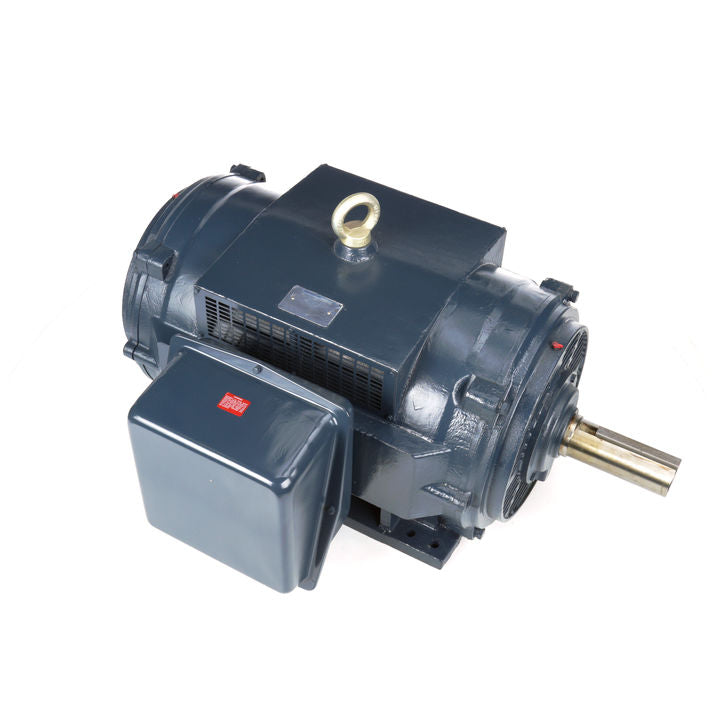

Marathon Electric GT0072, 40 Hp, 3600 Rpm, 286TS FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 286TSTDBD6001.

GT0072, 40 Hp, 3600 Rpm, 286TS FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 286TSTDBD6001.

Engineering Data

Output HP:40 Hp
Output KW:30.0 kW
Frequency:60 Hz
Voltage:230/460 V
Current:93.0/46.5 A
Speed:3562 rpm
Service Factor:1.15
Phase:3
Efficiency:92.4 %
Power Factor:87
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:F
Frame:286TS
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6211
Opp Drive End Bearing Size:6211
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Wye Start Delta Run Or Inverter
Poles:2
Rotation:Reversible
Resistance Main:.2468 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:TS
Overall Length:25.72 in
Frame Length:13.97 in
Shaft Diameter:1.625 in
Shaft Extension:3.25 in
Assembly/Box Mounting:F1/F2 CAPABLE
